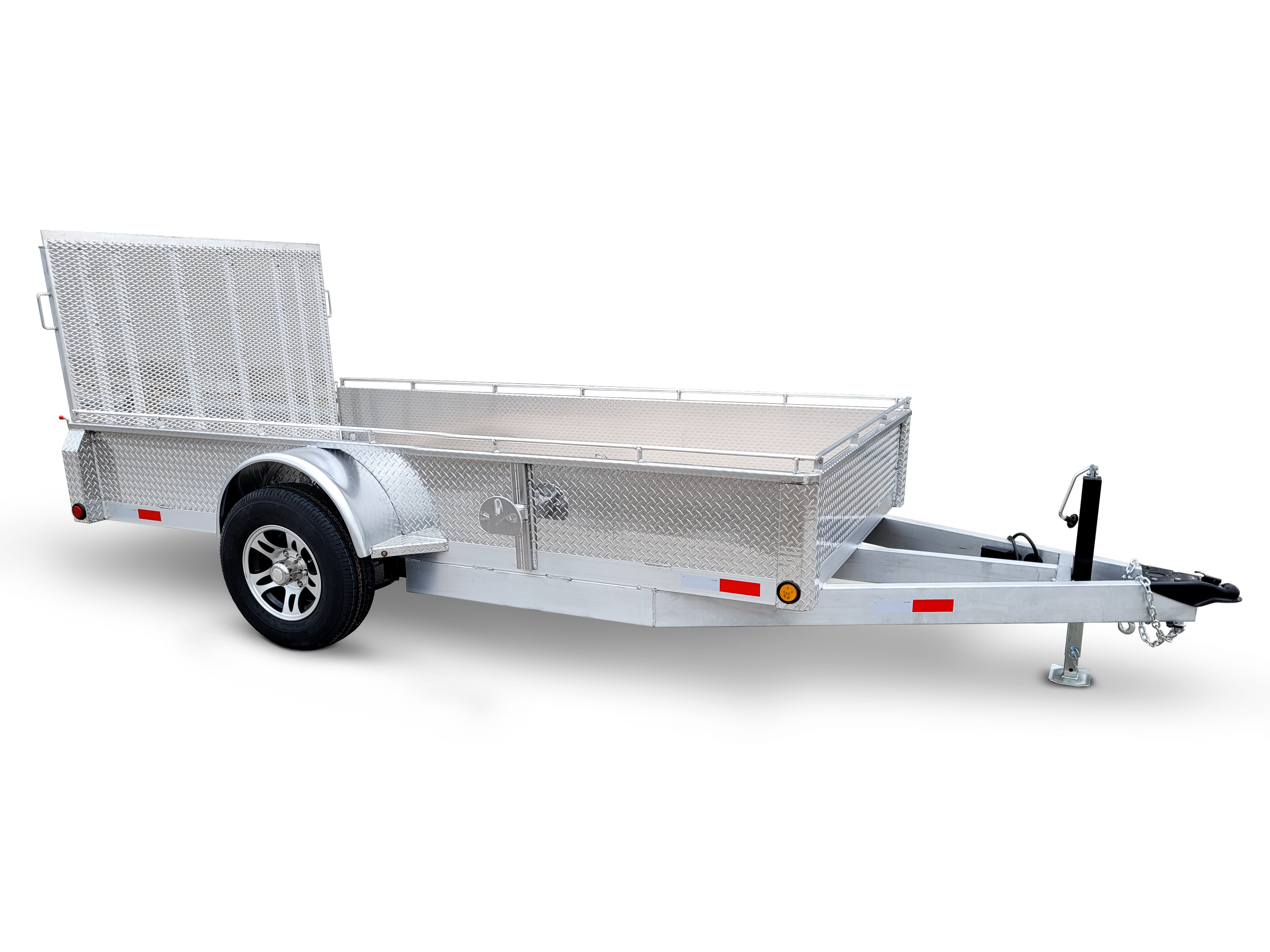

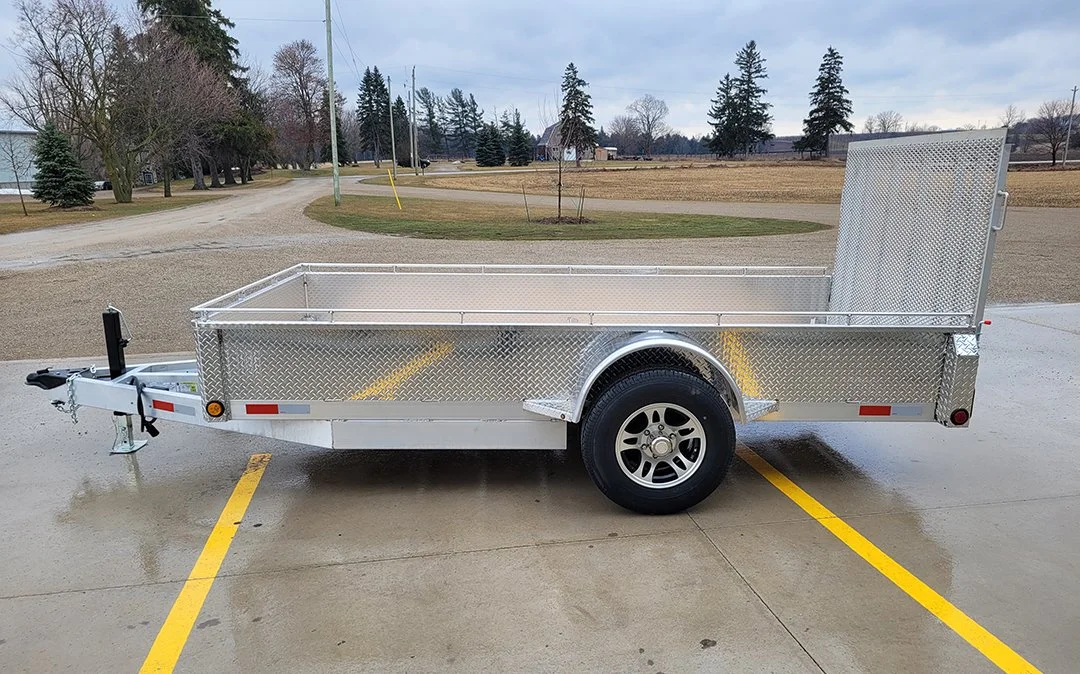

HD ALUMINUM UTILITY TRAILERS
1 x 5200 lb Axle
Up to 14 ft. Lengths
Uni-body Construction
18 Inch Deck Height

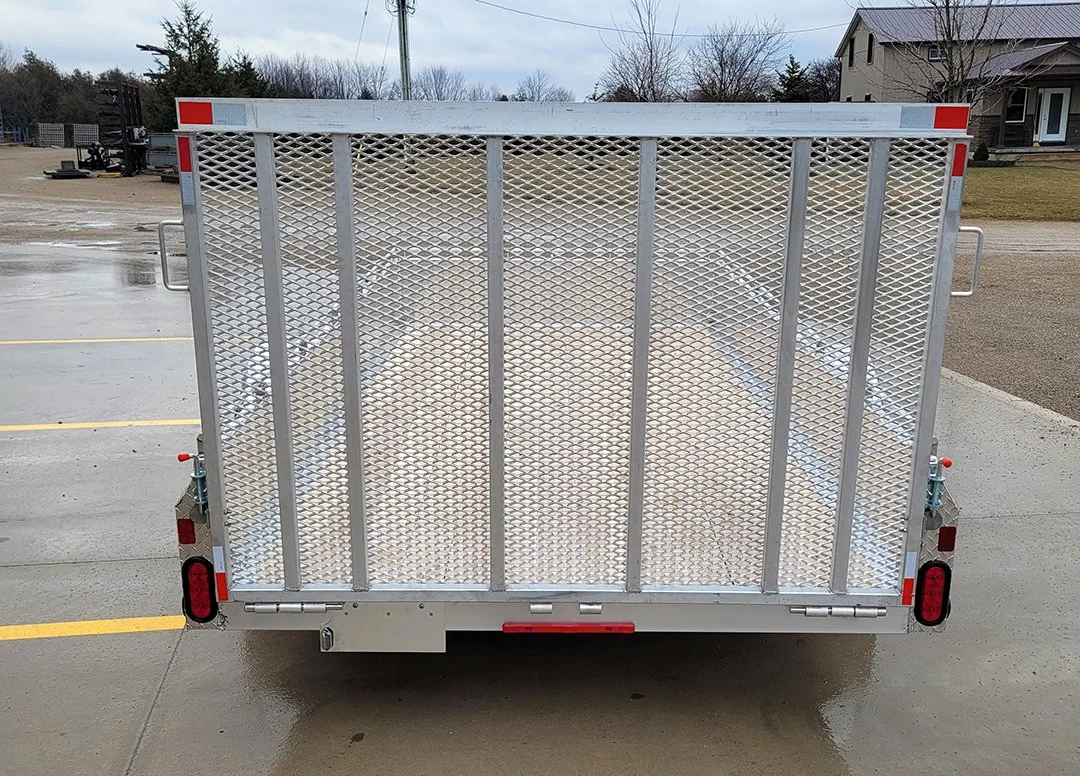

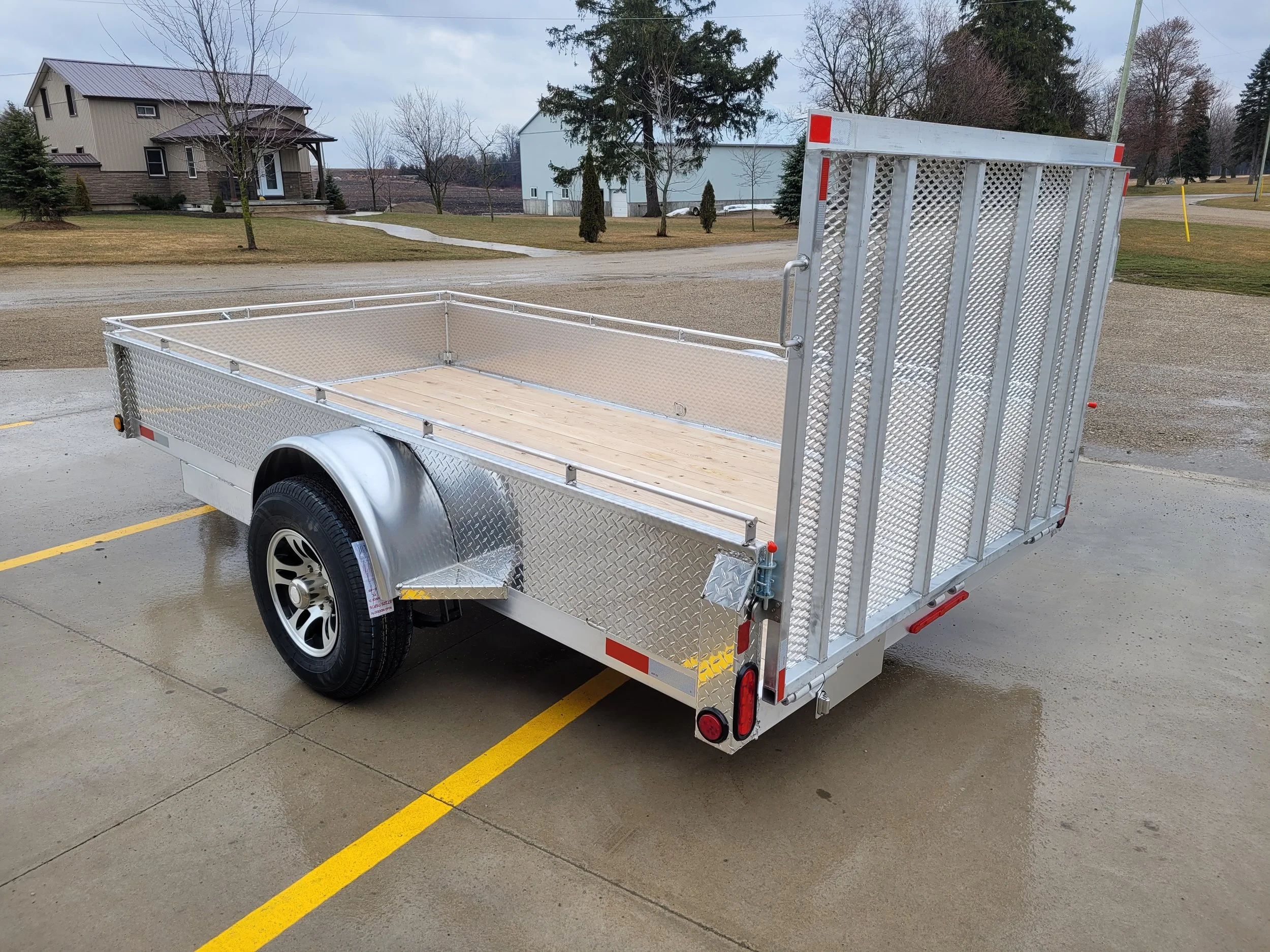

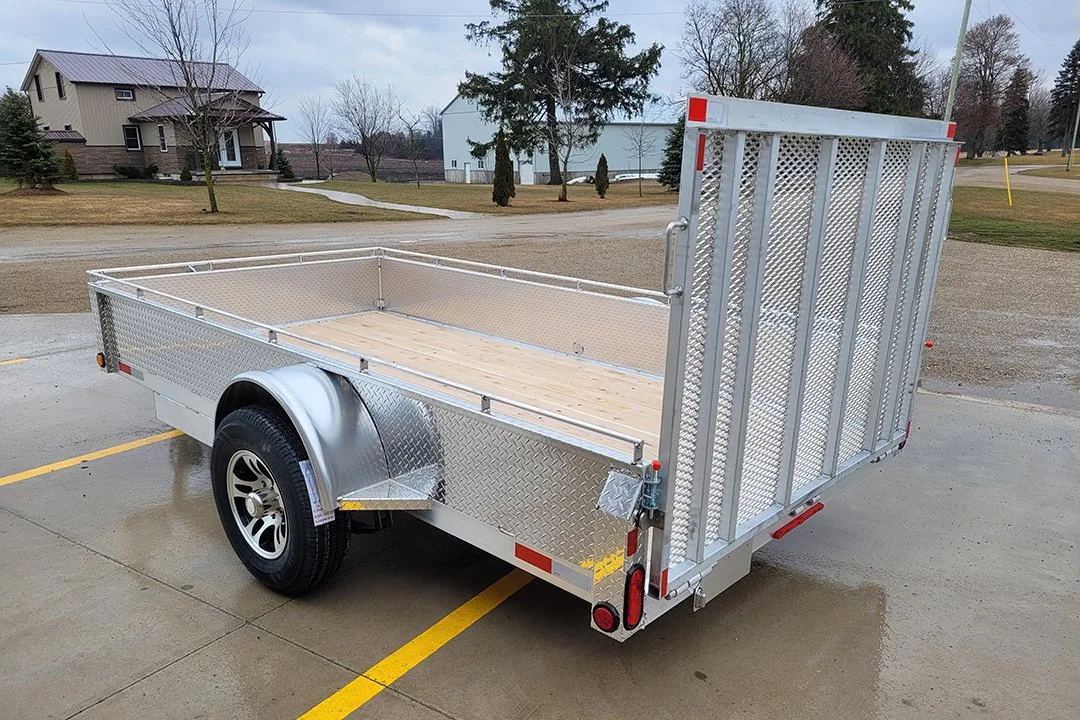

Easy-Load Ramp
SINGLE AXLE HD ALUMINUM
UTILITY TRAILERS
Our HD Aluminum Trailers are built tough for daily use commercial use and are popular for in the landscape industry. These easy to tow trailers are also convenient with outdoor enthusiasts to carry heavier loads on a single axle.
HD trailers come standard .
Our single axle HD utility trailers are fitted with 1×5200 lb axles with with electric brakes on one axle (7-pin plug) and stronger 4 x 2 frames. Designed to carry heavier loads, but not as much as tandem axle trailers, they offer a unique level of performance. Reinforced straight ramps are standard to accommodate heavier items.
Design Features
Uni-body Construction &
4 Inch Drop Axle
ST205/75R15 Tires with Aluminum Rims
Welded D Rings to Secure Load
Fender Support
Triple Tongue Extends Under the Bed
Enclosed Corner Box
with LED Lights
2000 Lb. Swivel Jack Stand
Sealed Wiring Harness
Optional Upgrades
Convenient V-Toolbox
Spare Tire

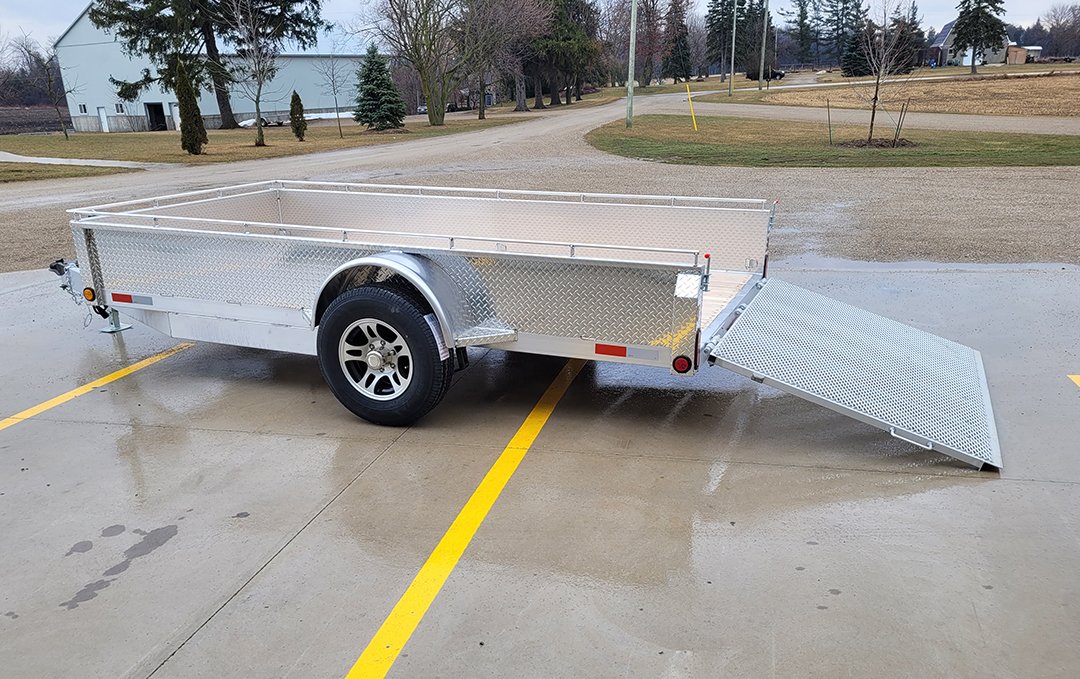

Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)
Side Loading Ramps
(Only available on some models)
Models & SPECIFICATIONS
Single Axle Models
Single |
5 x 10 | 5 x 12 | 5 x 14 |
|---|---|---|---|
| MODEL # | BCA510-35 | BCA512-35 | BCA514-35 |
| G.V.W.R. | 5000 lb | 5000 lb | 5000 lb |
| WEIGHT | NO DATA | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA | NO DATA |
| AXLES | 1 x 5200 lb | 1 x 5200 lb | 1 x 5200 lb |
| STANDARD RAMP | 60" x 50" | 60" x 50" | 60" x 50" |
| DECK DIMENSIONS | 60"x120" | 60"x144" | 60"x144" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 18" | 18" | 18" |
| FRAME & TONGUE | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube |
| COUPLER | 2 5/16" A-Frame | 2 5/16" A-Frame | 2 5/16" A-Frame |
| D RINGS | 4 (1/Corner) | 6 (3/Side) | 6 (3/Side) |
| TIRES | ST225/75R15 | ST225/75R15 | ST225/75R15 |
| RIMS | 15" Aluminum | 15" Aluminum | 15" Aluminum |
| BRAKES | Optional | Optional | Optional |
Single |
4 x 8 | 5 x 8 |
|---|---|---|
| MODEL # | BCA48-35 | BCA58-35 |
| G.V.W.R. | 5000 lb | 5000 lb |
| WEIGHT | NO DATA | |
| PAYLOAD | NO DATA | NO DATA |
| AXLES | 1 x 5200 lb | 1 x 5200 lb |
| STANDARD RAMP | 48" x 50" | 60" x 50" |
| DECK DIMENSIONS | 48"x96" | 60"x96" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 18" | 18" |
| FRAME & TONGUE | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube |
| COUPLER | 2 5/16" A-Frame | |
| D RINGS | 4 (1/Corner) | 4 (1/Corner) |
| TIRES | ST225/75R15 | ST225/75R15 |
| RIMS | 15" Aluminum | 15" Aluminum |
| BRAKES |
Single |
6 x 10 | 6 x 12 | 6 x 14 |
|---|---|---|---|
| MODEL # | BCA610-35 | BCA612-35 | BCA614-35 |
| G.V.W.R. | 5000 lb | 5000 lb | 5000 lb |
| WEIGHT | NO DATA | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA | NO DATA |
| AXLES | 1 x 5200 lb | 1 x 5200 lb | 1 x 5200 lb |
| STANDARD RAMP | 72" x 50" | 72" x 50" | 72" x 50" |
| DECK DIMENSIONS | 72"x120" | 72"x144" | 72"x144" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 18" | 18" | 18" |
| FRAME & TONGUE | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube |
| COUPLER | 2 5/16" A-Frame | 2 5/16" A-Frame | 2 5/16" A-Frame |
| D RINGS | 4 (1/Corner) | 6 (3/Side) | 6 (3/Side) |
| TIRES | ST225/75R15 | ST225/75R15 | ST225/75R15 |
| RIMS | 15" Aluminum | 15" Aluminum | 15" Aluminum |
| BRAKES | Optional | Optional | Optional |
Single |
80 x 12 | 80 x 14 |
|---|---|---|
| MODEL # | BCA8012-35 | BCA8014-35 |
| G.V.W.R. | 5000 lb | 5000 lb |
| WEIGHT | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA |
| AXLES | 1 x 5200 lb | 1 x 5200 lb |
| STANDARD RAMP | 80" x 50" | 80" x 50" |
| DECK DIMENSIONS | 80"x144" | 80"x168" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 18" | 18" |
| FRAME & TONGUE | 4"x2" Aluminum Tube | 4"x2" Aluminum Tube |
| COUPLER | 2 5/16" A-Frame | 2 5/16" A-Frame |
| D RINGS | 6 (3/Side) | 6 (3/Side) |
| TIRES | ST225/75R15 | ST225/75R15 |
| RIMS | 15" Aluminum | 15" Aluminum |
| BRAKES | Optional | Optional |
