STEEL
UTILITY TRAILERS
1 x 3500 Axle
20 Inch Deck Height
Full Width 54” Mesh Ramp
Wrap-Around Tie-Down Bar
GALVANIZED & POWDER COATED

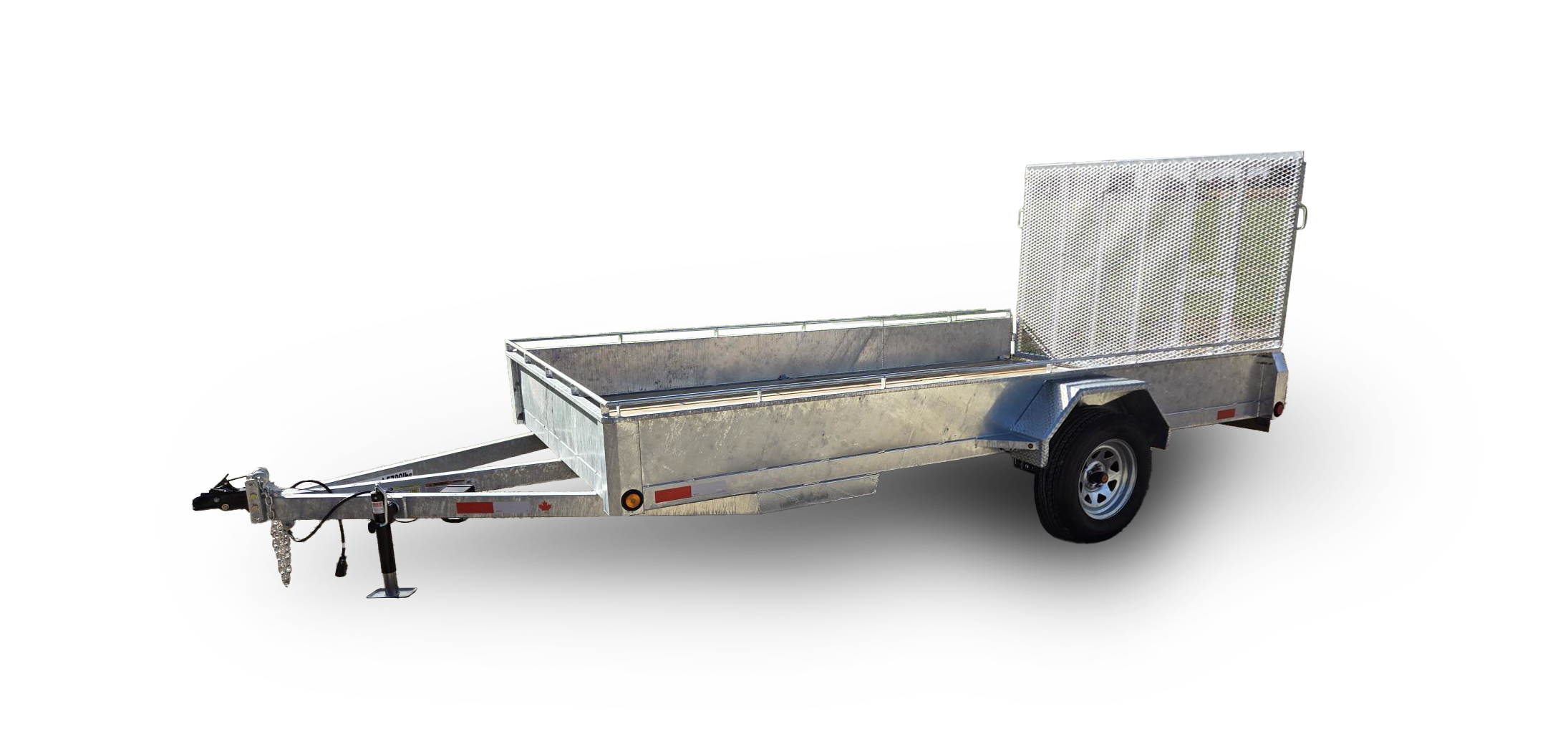

STEEL UTILITY TRAILERS
Built for reliability and everyday versatility, Bearco steel utility trailers are an economical solution for heavier duty jobs like landscaping, construction and hauling debris, without bending or denting easily. The heavier weight of steel also translates to a sturdier, more stable feel even over rough roads and terrain.

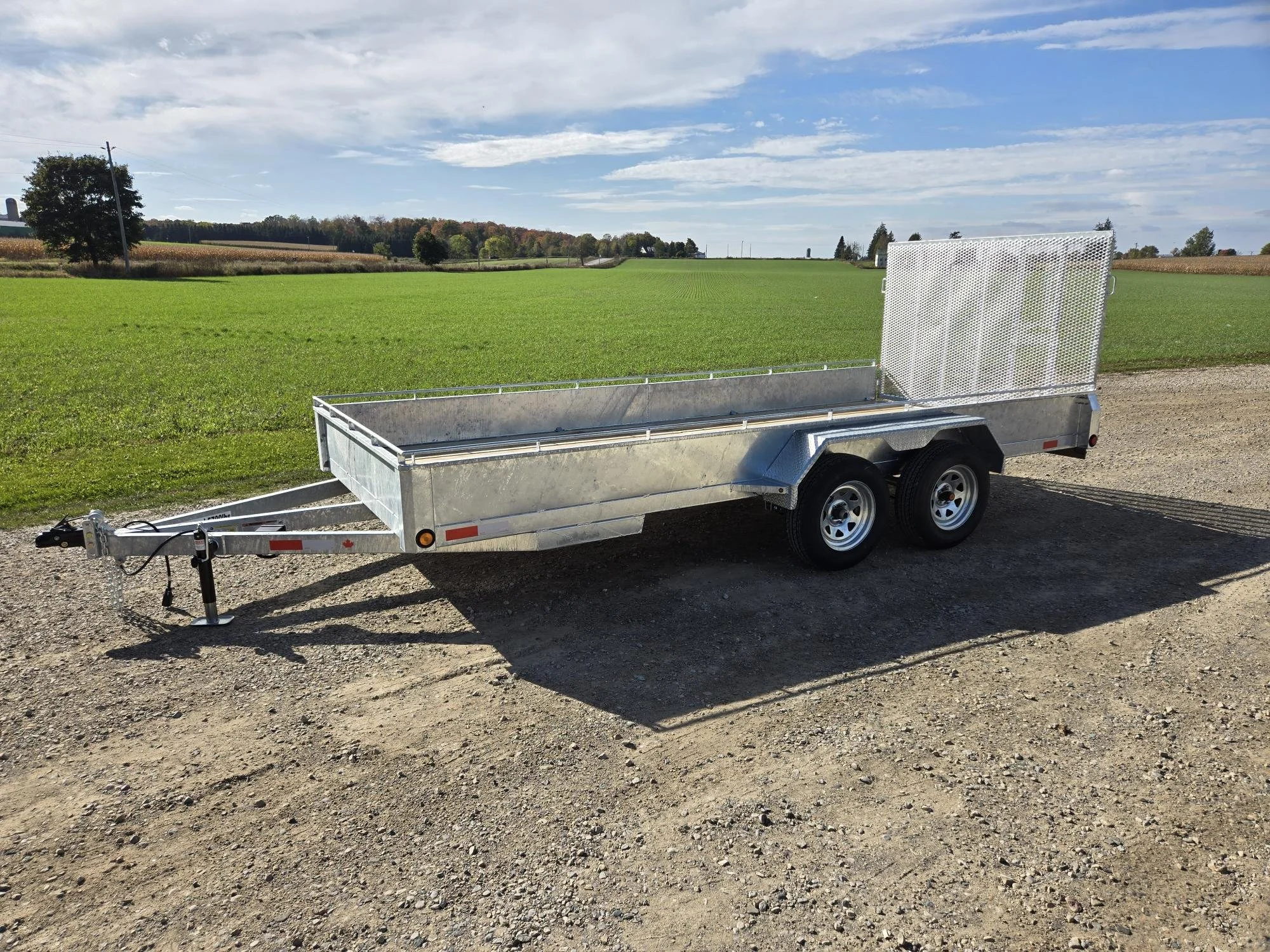

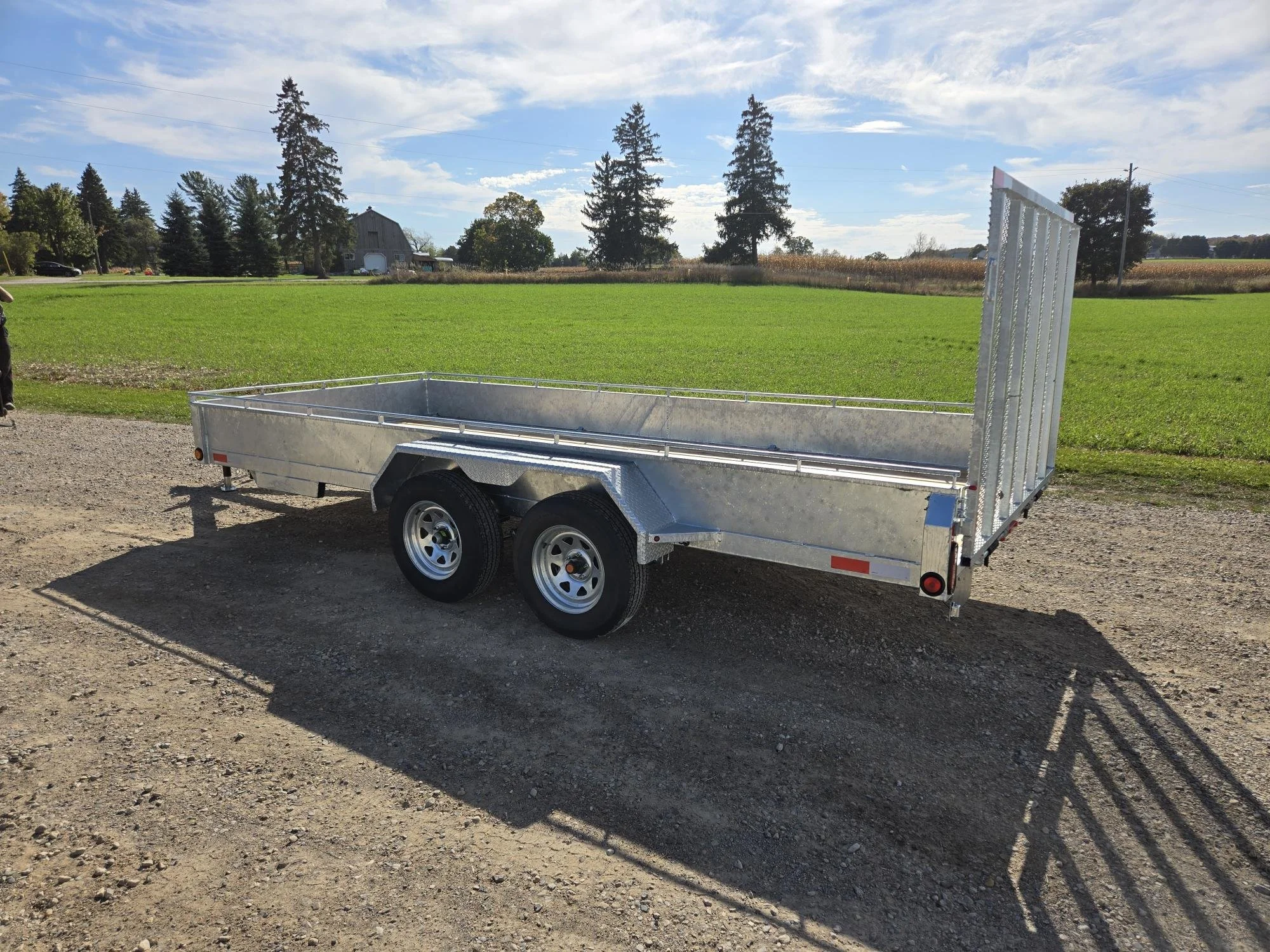

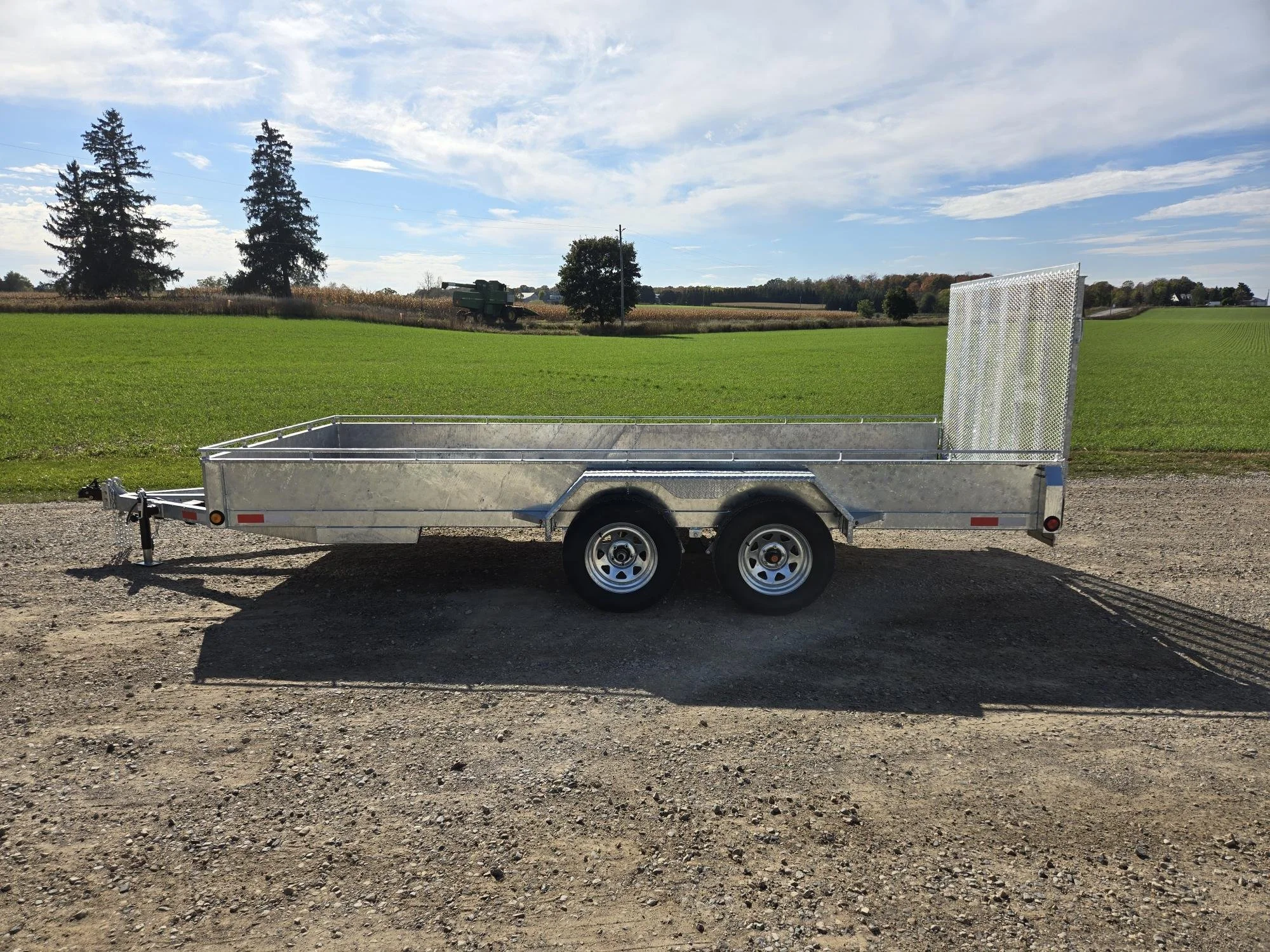

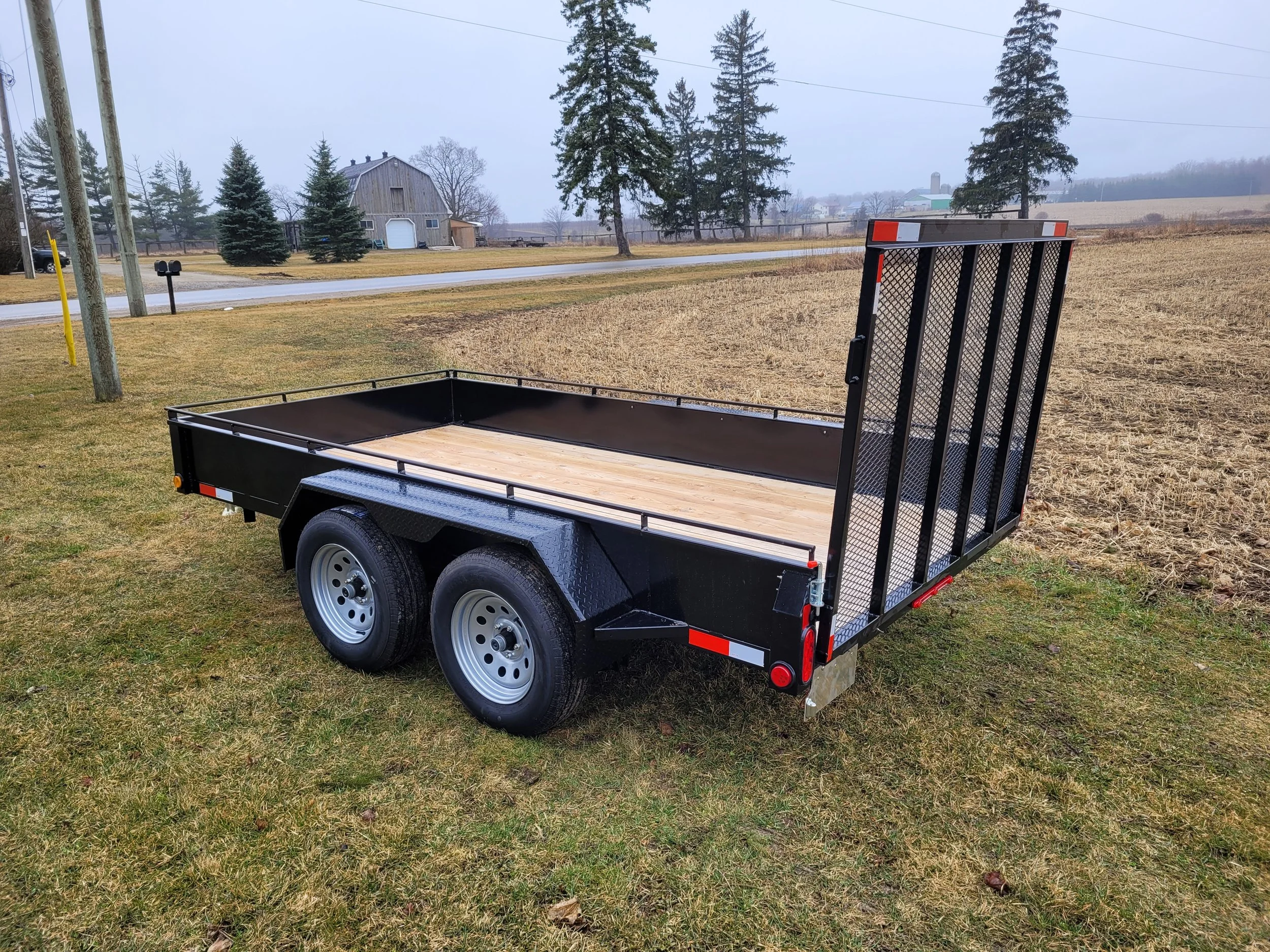

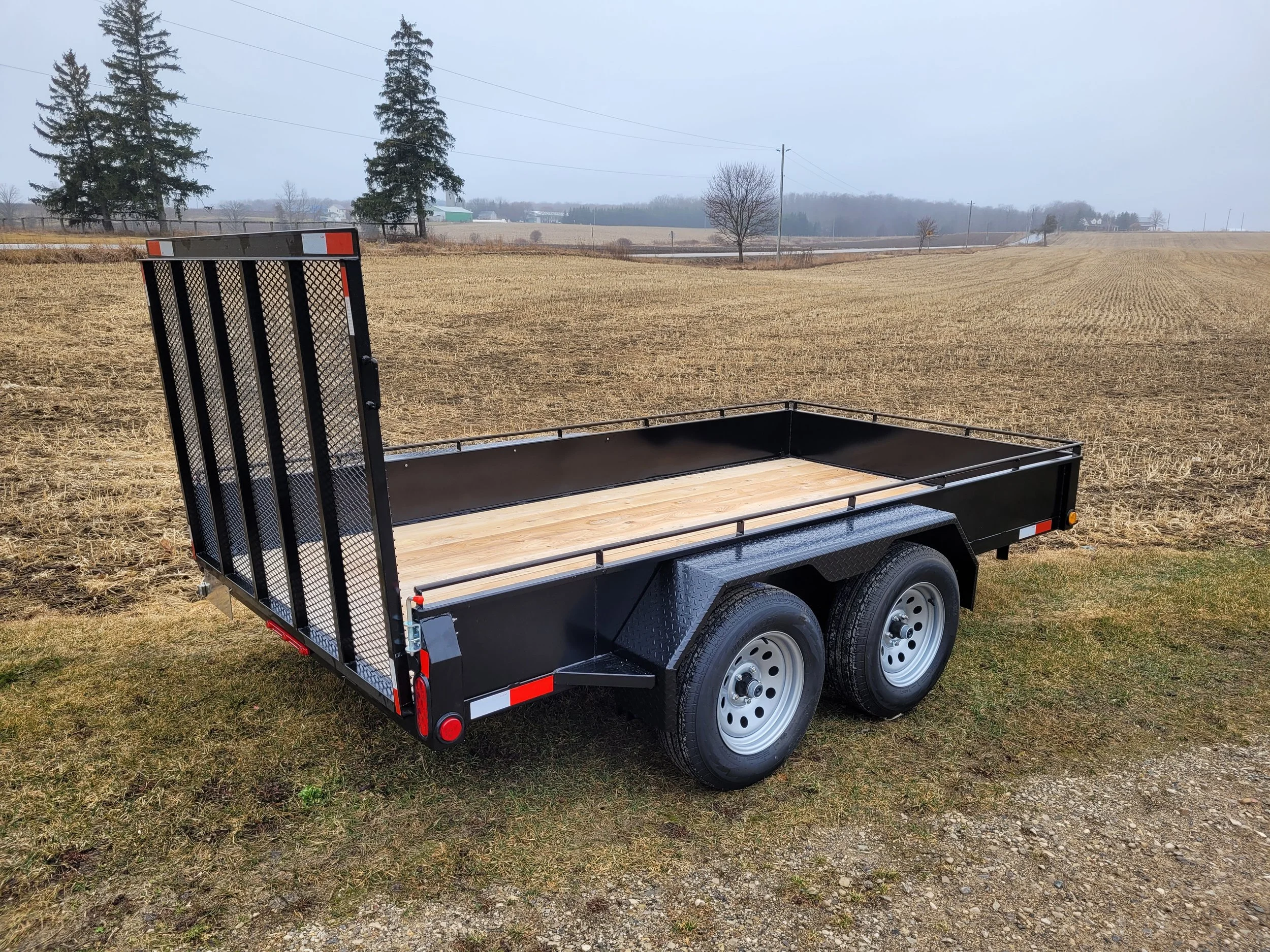

Our tandem trailers are fitted with 2×3500 lb axles (one with electric brake) to carry larger and heavier loads. Load and unload zero-turn mowers without issue with the 20” deck height and 54” spring assisted ramps.

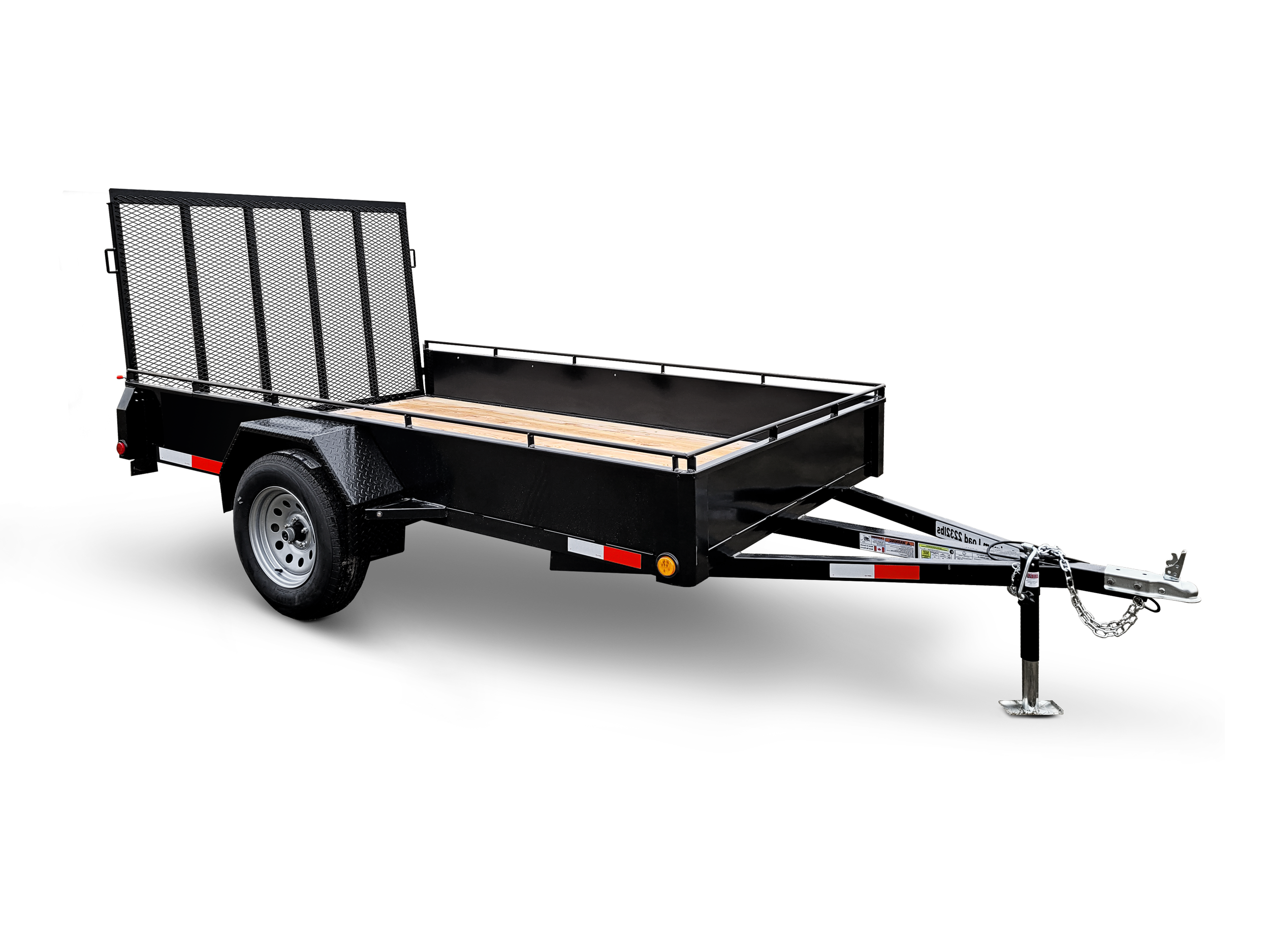

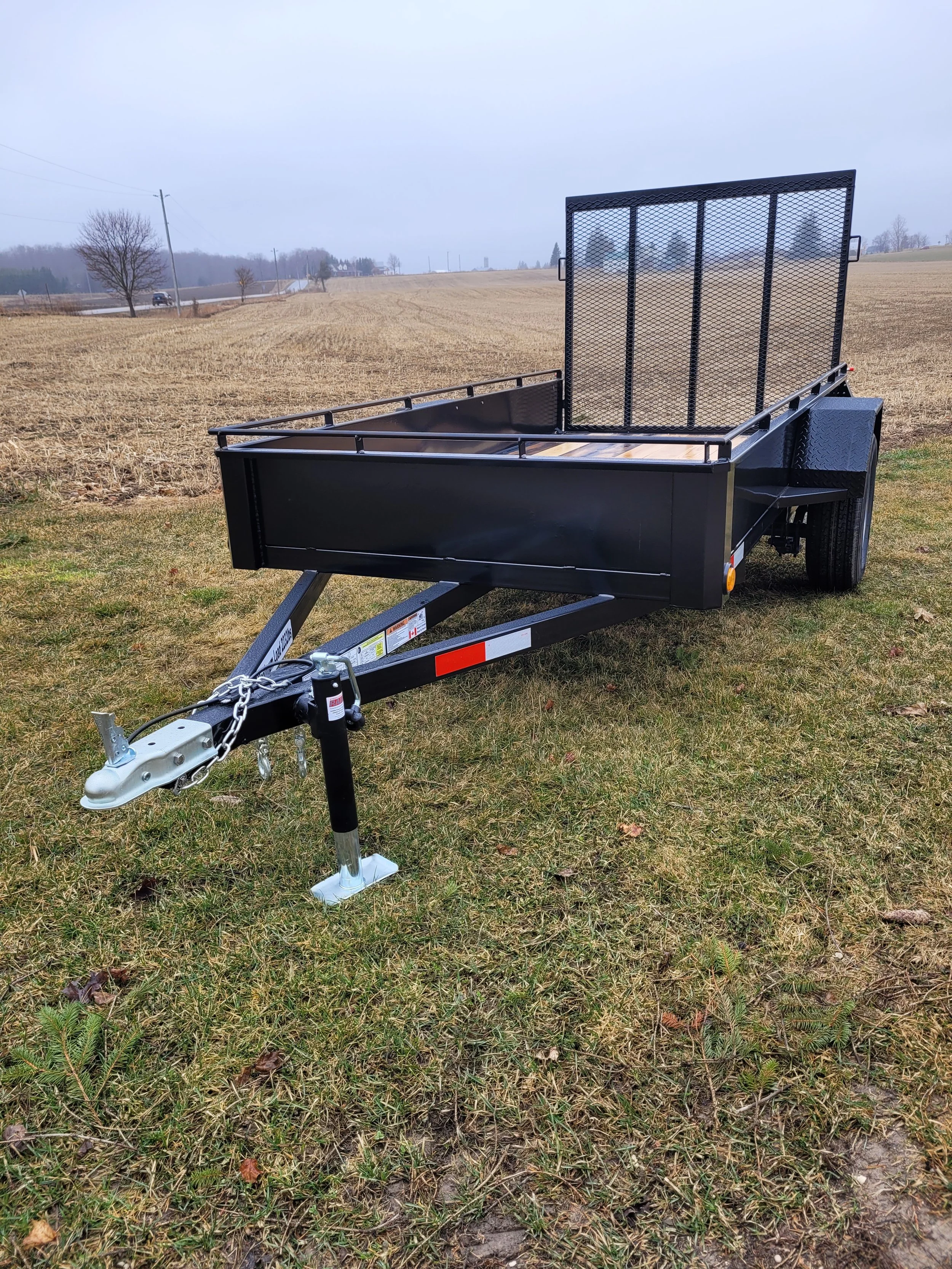

Featuring a galvanized finish for superior rust and corrosion resistance, our steel utility trailers are built to stand up to harsh winter weather conditions. A powder coated finish is also available in standard black or optional custom colours (Forest Green, Red, Charcoal, Cobalt Blue, and Golden Yellow).
Bearco Trailers are Built to Bear the Load and ready to haul. Order yours today from one of our trusted dealers.
Design Features

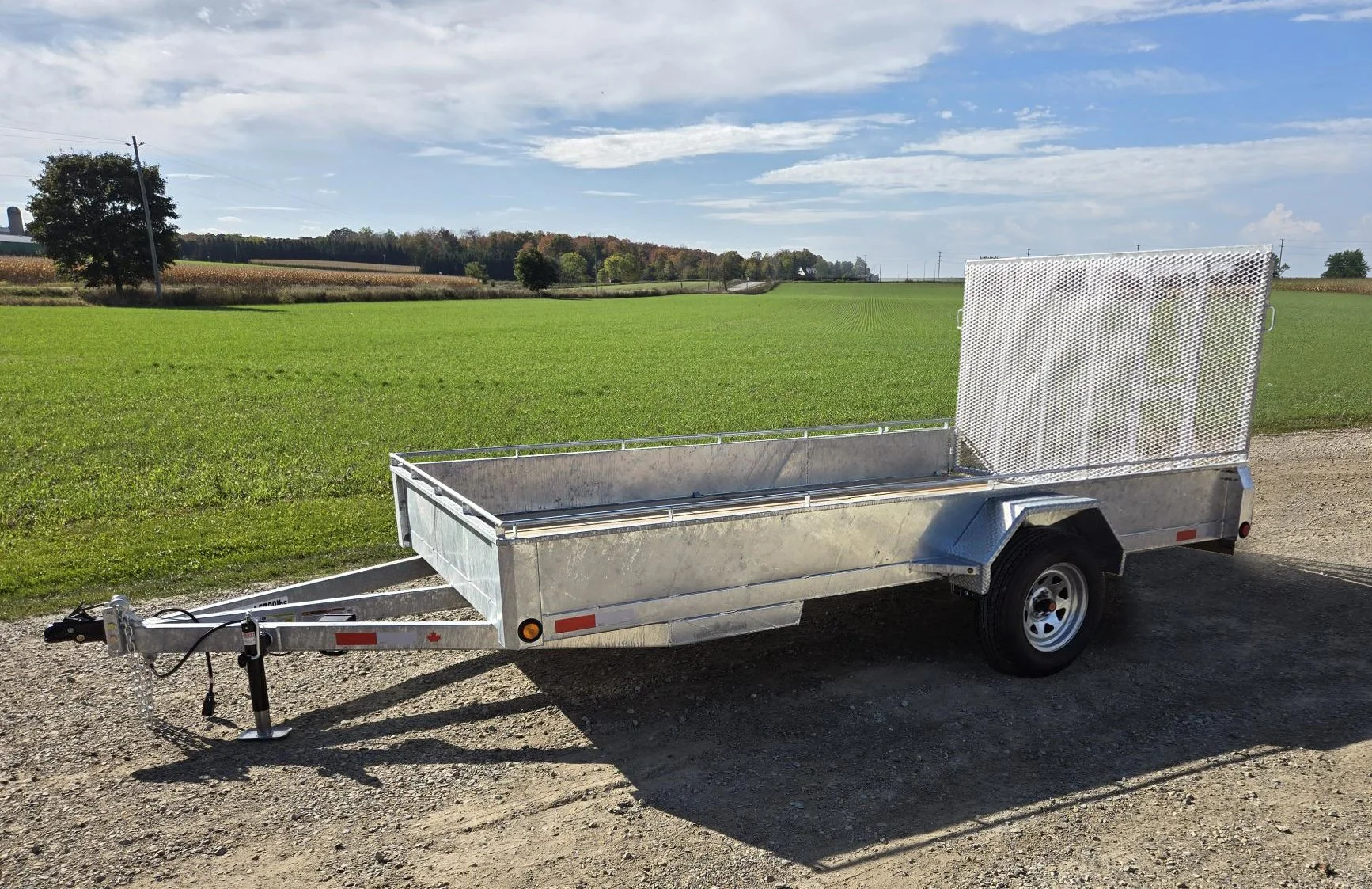

Uni-body Construction &
4 Inch Drop Axle
ST205/75R15 Tires with Aluminum Rims

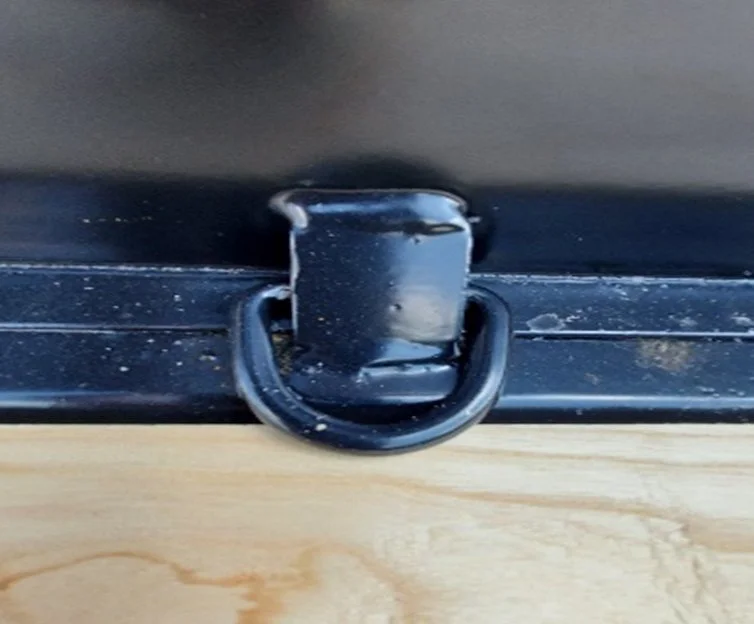

Welded D Rings to Secure Load

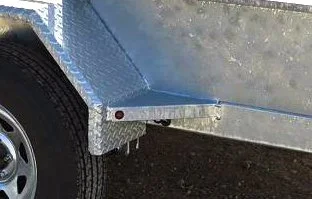

Fender Support
Triple Tongue Extends Under the Bed

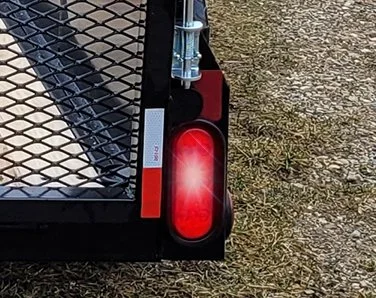

Enclosed Corner Box
with LED Lights

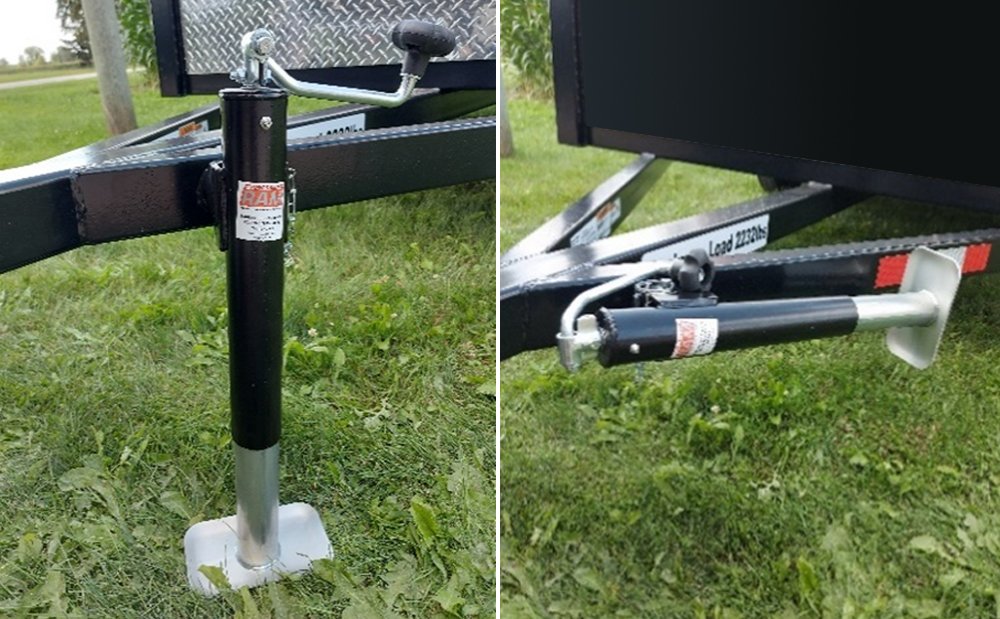

2000 Lb. Swivel Jack Stand
Sealed Wiring Harness
Optional Upgrades
Convenient V-Toolbox
Spare Tire
Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)
Side Loading Ramps
(Only available on some models)
Models & SPECIFICATIONS
Single Axle Models GaLvanized STEEL
Single |
5 x 10 | 5 x 12 | 5 x 14 |
|---|---|---|---|
| MODEL # | BCA510-35 | BCA512-35 | BCA514-35 |
| G.V.W.R. | 2990 lb | 2990 lb | 2990 lb |
| WEIGHT | NO DATA | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA | NO DATA |
| AXLES | 1 x 3500 lb | 1 x 3500 lb | 1 x 3500 lb |
| STANDARD RAMP | 60" x 50" | 60" x 50" | 60" x 50" |
| DECK DIMENSIONS | 60"x120" | 60"x144" | 60"x144" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 20" | 20" | 20" |
| FRAME & TONGUE | 3"x2" Steel Tube | 3"x2" Steel Tube | 3"x2" Steel Tube |
| COUPLER | 2" Straight | 2" Straight | 2" Straight |
| D RINGS | 4 - 1 per Corner | 6 - 3 per Side | 6 - 3 per Side |
| TIRES | ST205/75R15 | ST205/75R15 | ST205/75R15 |
| RIMS | 15" Silver Powder Coated | 15" Silver Powder Coated | 15" Silver Powder Coated |
| BRAKES | N/A | N/A | N/A |
Single |
4 x 8 | 5 x 8 |
|---|---|---|
| MODEL # | BCA48-35 | BCA58-35 |
| G.V.W.R. | 2990 lb | 2990 lb |
| WEIGHT | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA |
| AXLES | 1 x 3500 lb | 1 x 3500 lb |
| STANDARD RAMP | 48" x 50" | 60" x 50" |
| DECK DIMENSIONS | 50"x97" | 60"x97" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 20" | 20" |
| FRAME & TONGUE | 3"x2" Steel Tube | 3"x2" Steel Tube |
| COUPLER | 2" Straight | 2" Straight |
| D RINGS | 4 - 1 per Corner | 4 - 1 per Corner |
| TIRES | ST205/75R15 | ST205/75R15 |
| RIMS | 15" Silver Powder Coated | 15" Silver Powder Coated |
| BRAKES | N/A | N/A |
Single |
6 x 10 | 6 x 12 | 6 x 14 |
|---|---|---|---|
| MODEL # | BCA610-35 | BCA612-35 | BCA614-35 |
| G.V.W.R. | 2990 lb | 2990 lb | 2990 lb |
| WEIGHT | NO DATA | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA | NO DATA |
| AXLES | 1 x 3500 lb | 1 x 3500 lb | 1 x 3500 lb |
| STANDARD RAMP | 72" x 50" | 72" x 50" | 72" x 50" |
| DECK DIMENSIONS | 72"x120" | 72"x144" | 72"x144" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 20" | 20" | 20" |
| FRAME & TONGUE | 3"x2" Steel Tube | 3"x2" Steel Tube | 3"x2" Steel Tube |
| COUPLER | 2" Straight | 2" Straight | 2" Straight |
| D RINGS | 4 - 1 per Corner | 6 - 3 per Side | 6 - 3 per Side |
| TIRES | ST205/75R15 | ST205/75R15 | ST205/75R15 |
| RIMS | 15" Silver Powder Coated | 15" Silver Powder Coated | 15" Silver Powder Coated |
| BRAKES | N/A | N/A | N/A |
Single |
80 x 12 | 80 x 14 |
|---|---|---|
| MODEL # | BCA8012-35 | BCA8014-35 |
| G.V.W.R. | 2990 lb | 2990 lb |
| WEIGHT | NO DATA | NO DATA |
| PAYLOAD | NO DATA | NO DATA |
| AXLES | 1 x 3500 lb | 1 x 3500 lb |
| STANDARD RAMP | 80" x 50" | 80" x 50" |
| DECK DIMENSIONS | 80"x144" | 80"x168" |
| FLOOR | 1.5" Solid Wood | 1.5" Solid Wood |
| DECK HEIGHT | 20" | 20" |
| FRAME & TONGUE | 3"x2" Steel Tube | 3"x2" Steel Tube |
| COUPLER | 2" A-Frame | 2" A-Frame |
| D RINGS | 6 - 3 per Side | 6 - 3 per Side |
| TIRES | ST205/75R15 | ST205/75R15 |
| RIMS | 15" Silver Powder Coated | 15" Silver Powder Coated |
| BRAKES | N/A | N/A |
