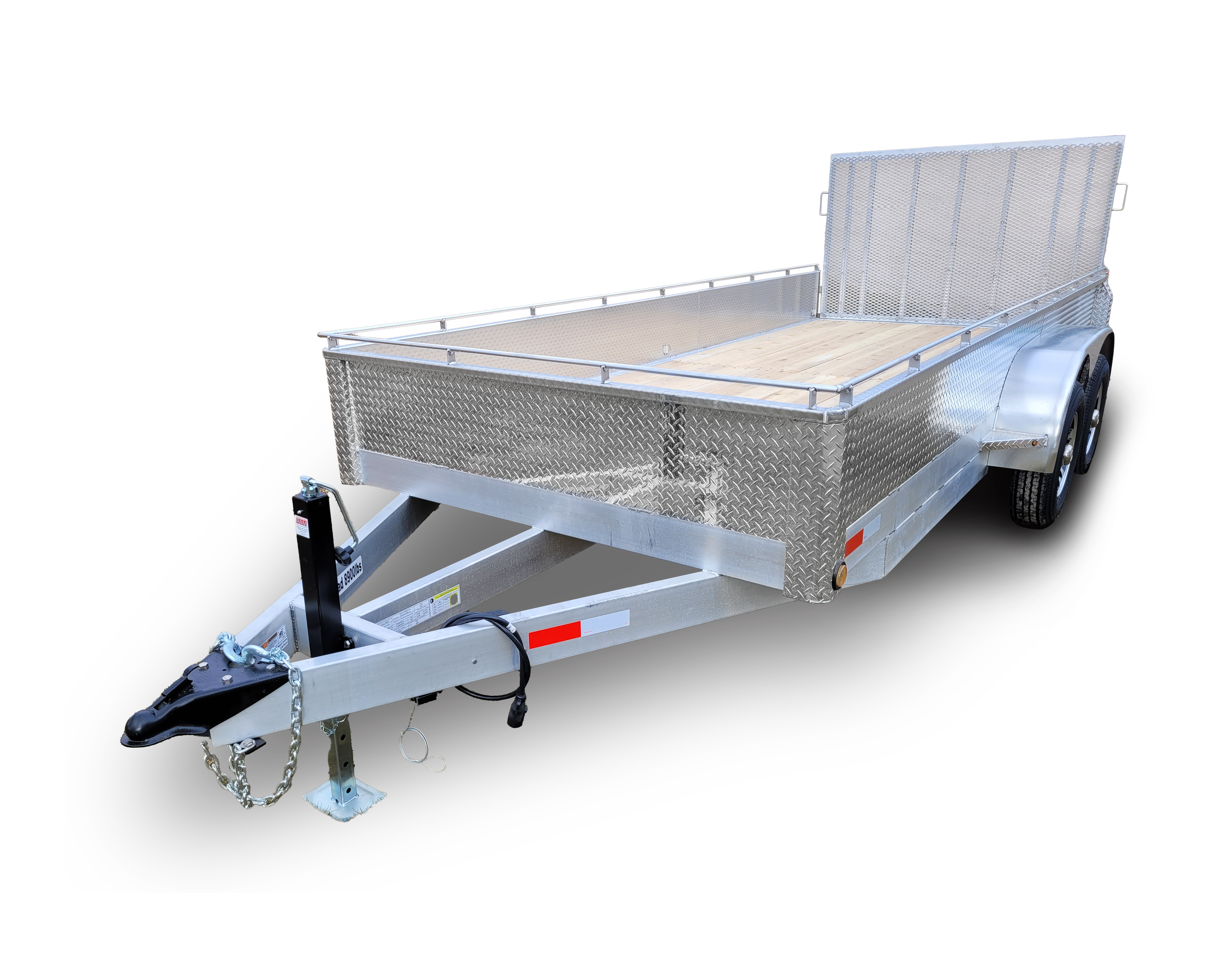

Metal utility trailer with an open cargo bed, folding tailgate, and dual axles, isolated on black background.

HD ALUMINUM TANDEM AXLE
LANDSCAPE TRAILERS

2 x 5200 lb Axle
Electric Brakes
Uni-body Construction
18 Inch Deck Height
Easy-Load Ramp

TANDEM AXLE HD ALUMINUM
LANDSCAPE TRAILERS

Our HD Aluminum Trailers are built tough for daily use commercial use and are popular for in the landscape industry.

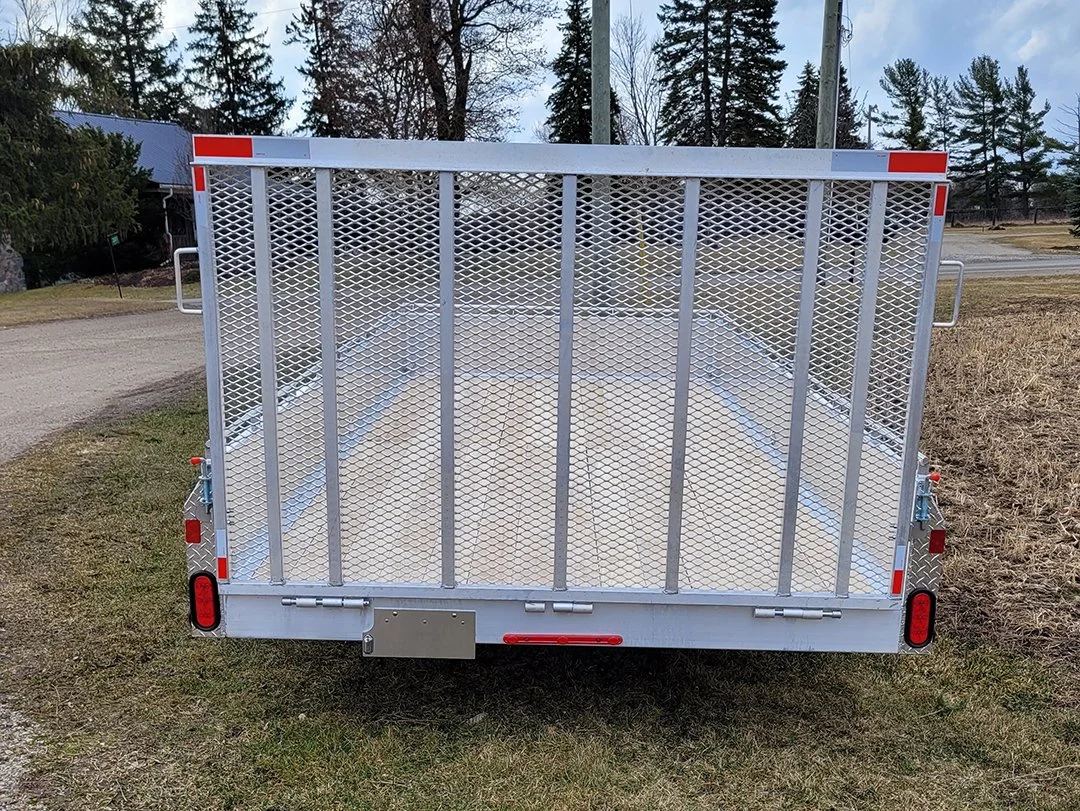

Tandem axles are fitted with 2×5200 lb axles with stronger frames. Both axles have adjusting electrical brakes to stop you safely. The ramps are spring assisted and heavy duty with loading supports. (Ramps are also available as split ramps to assist with opening and closing.)

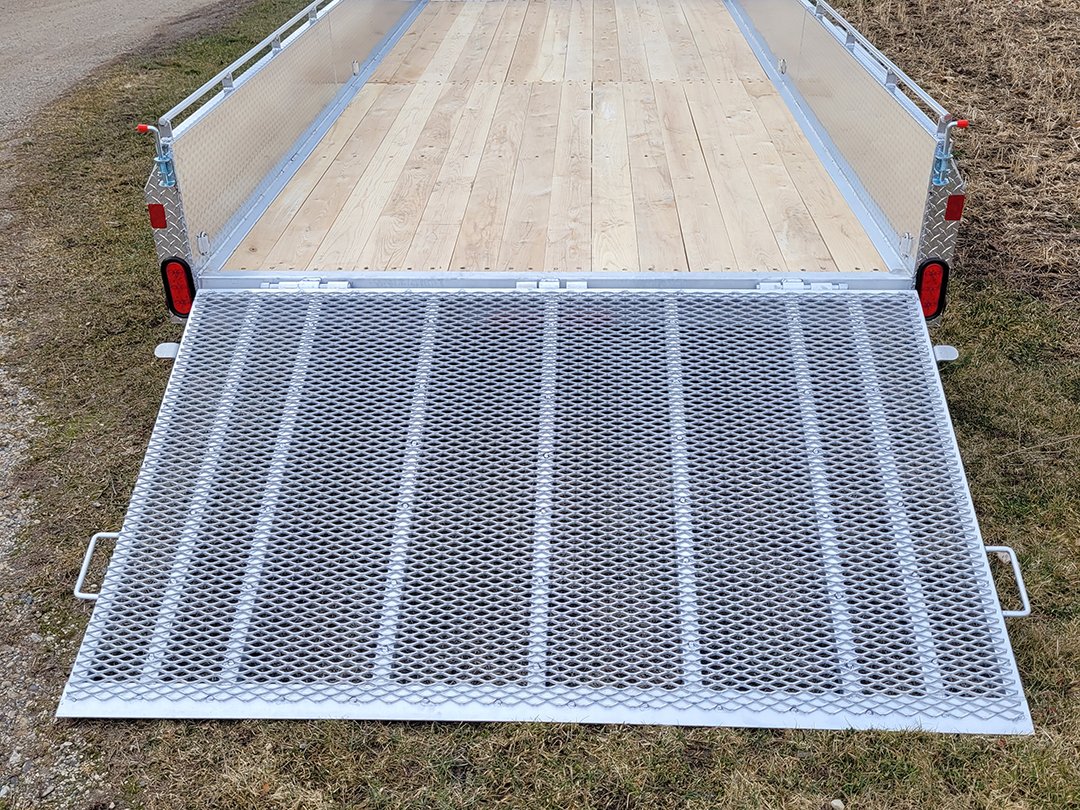

Reinforced straight ramps are standard to accommodate heavier items.

FEATURES

Options

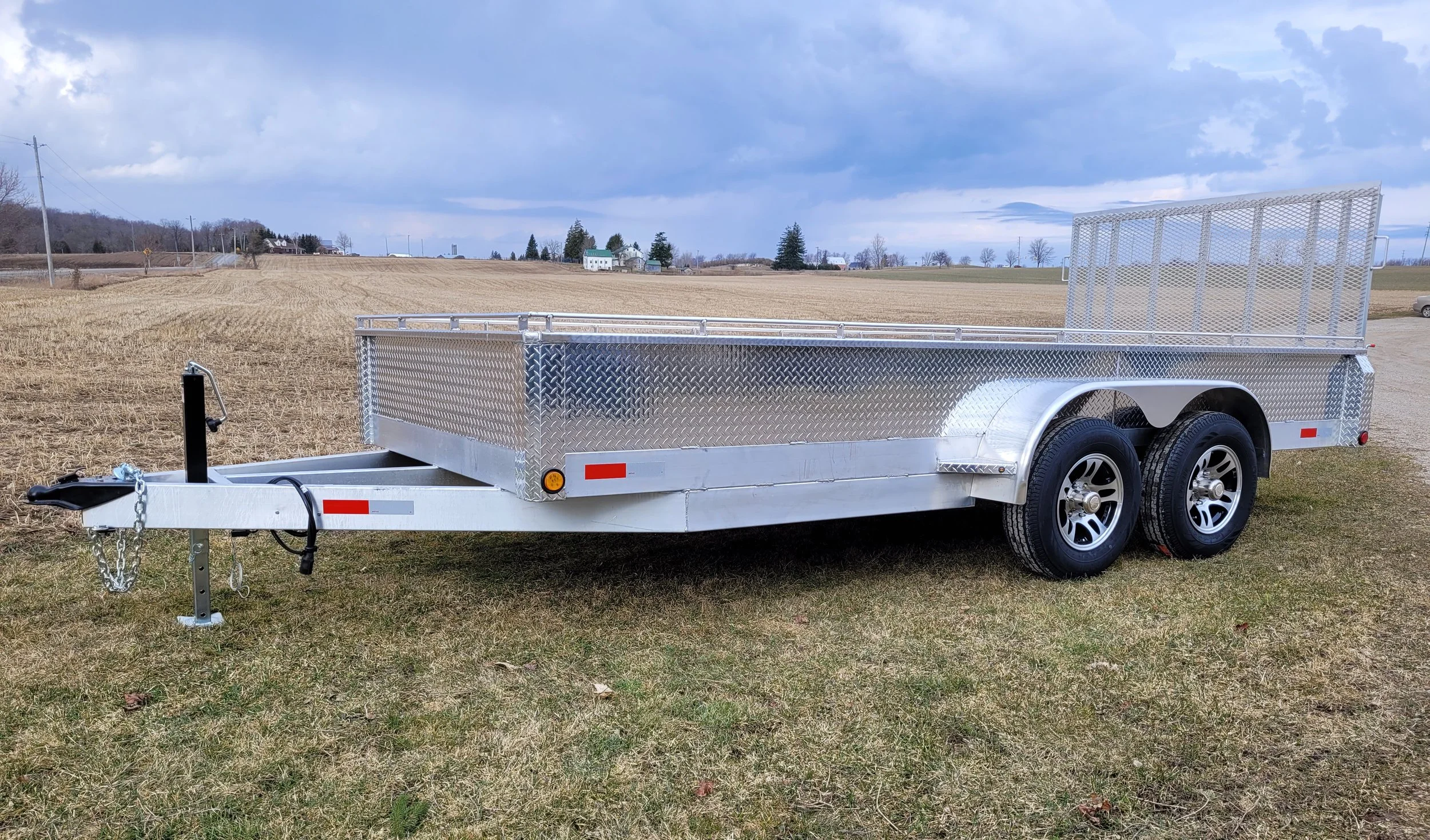

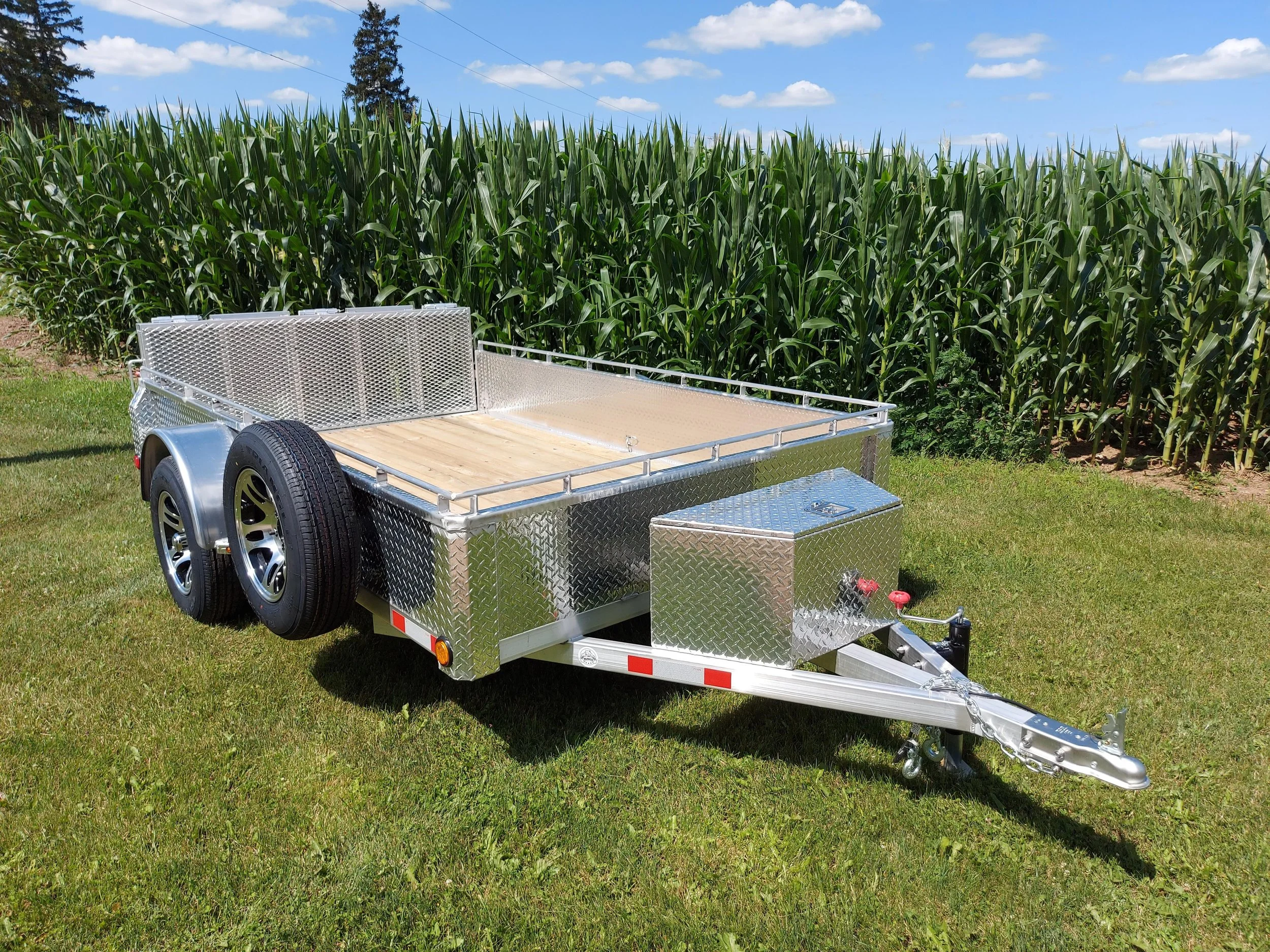

A silver utility trailer parked on grass in an open field, with a partly cloudy sky above.

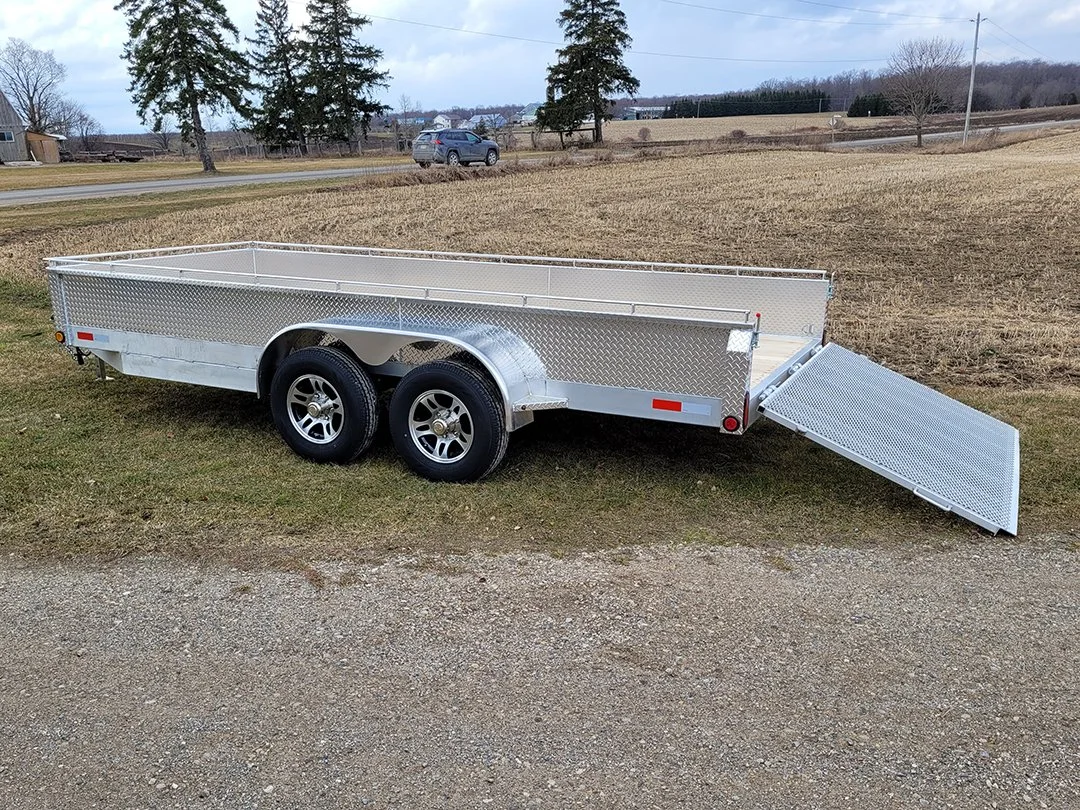

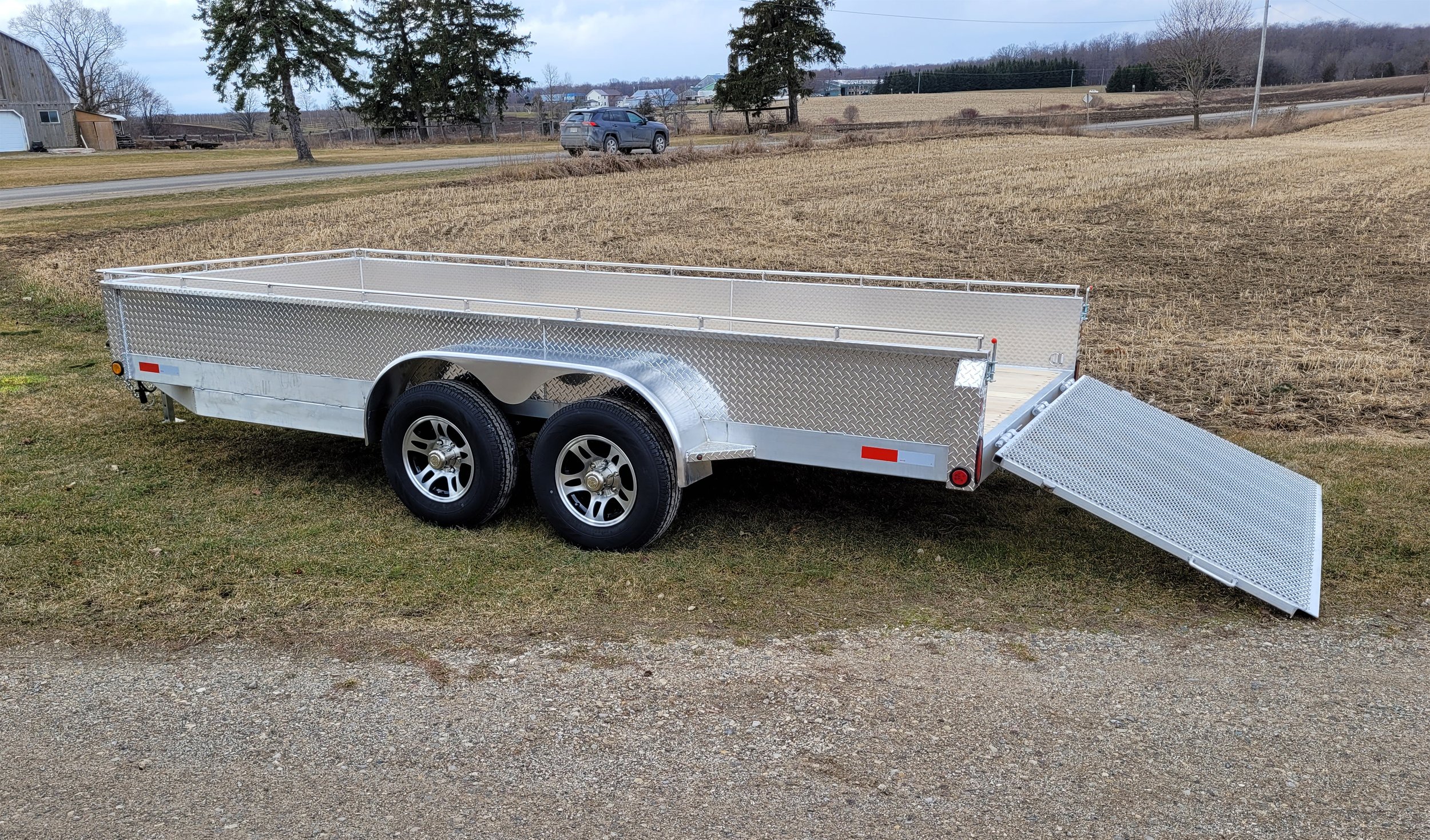

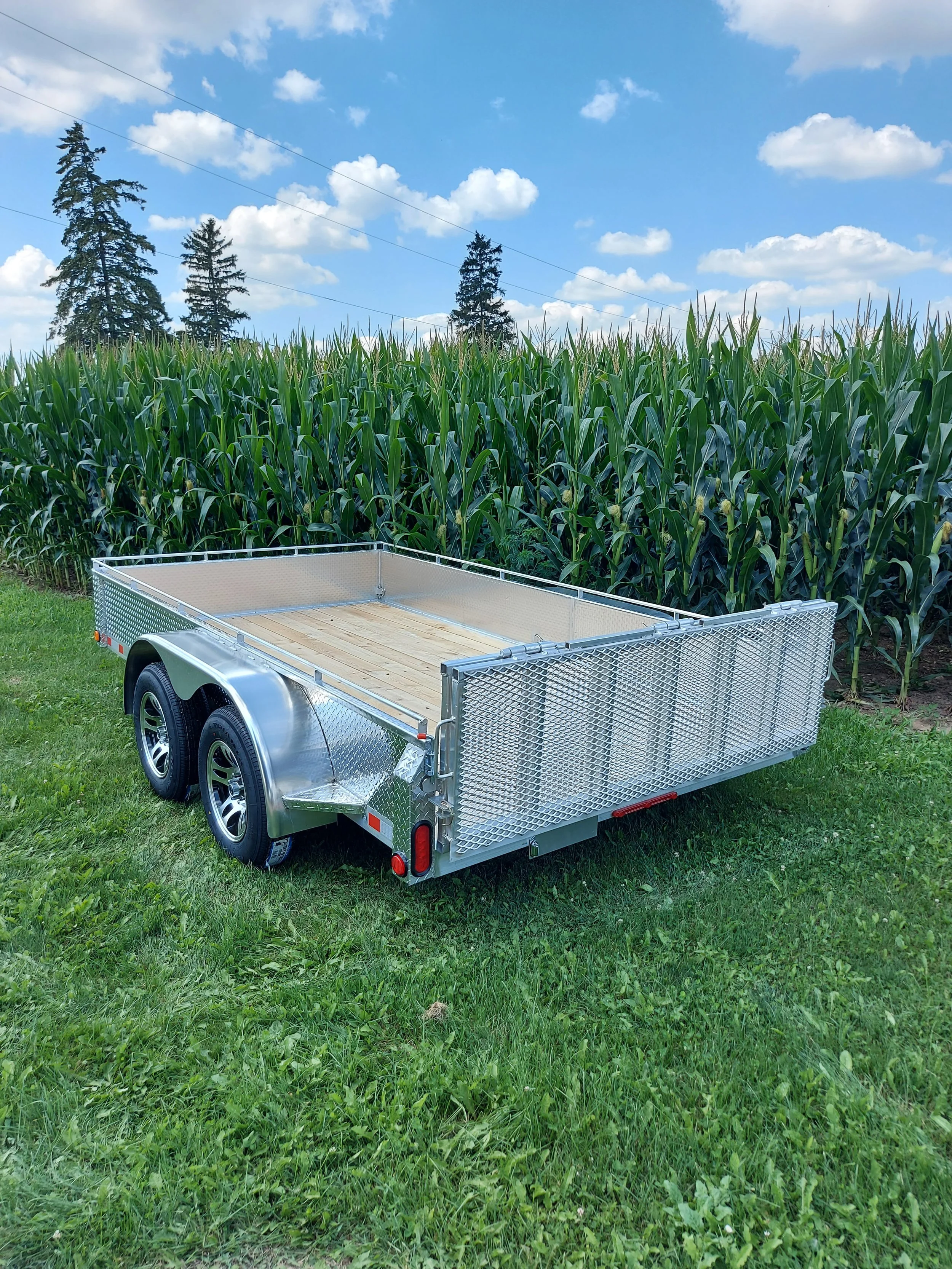

Silver utility trailer with dual axles on a grassy area, with a ramp lowered at the back, and a rural landscape in the background.

Models & Specifications

Gallery

Design Features

Uni-body Construction &
4 Inch Drop Axle

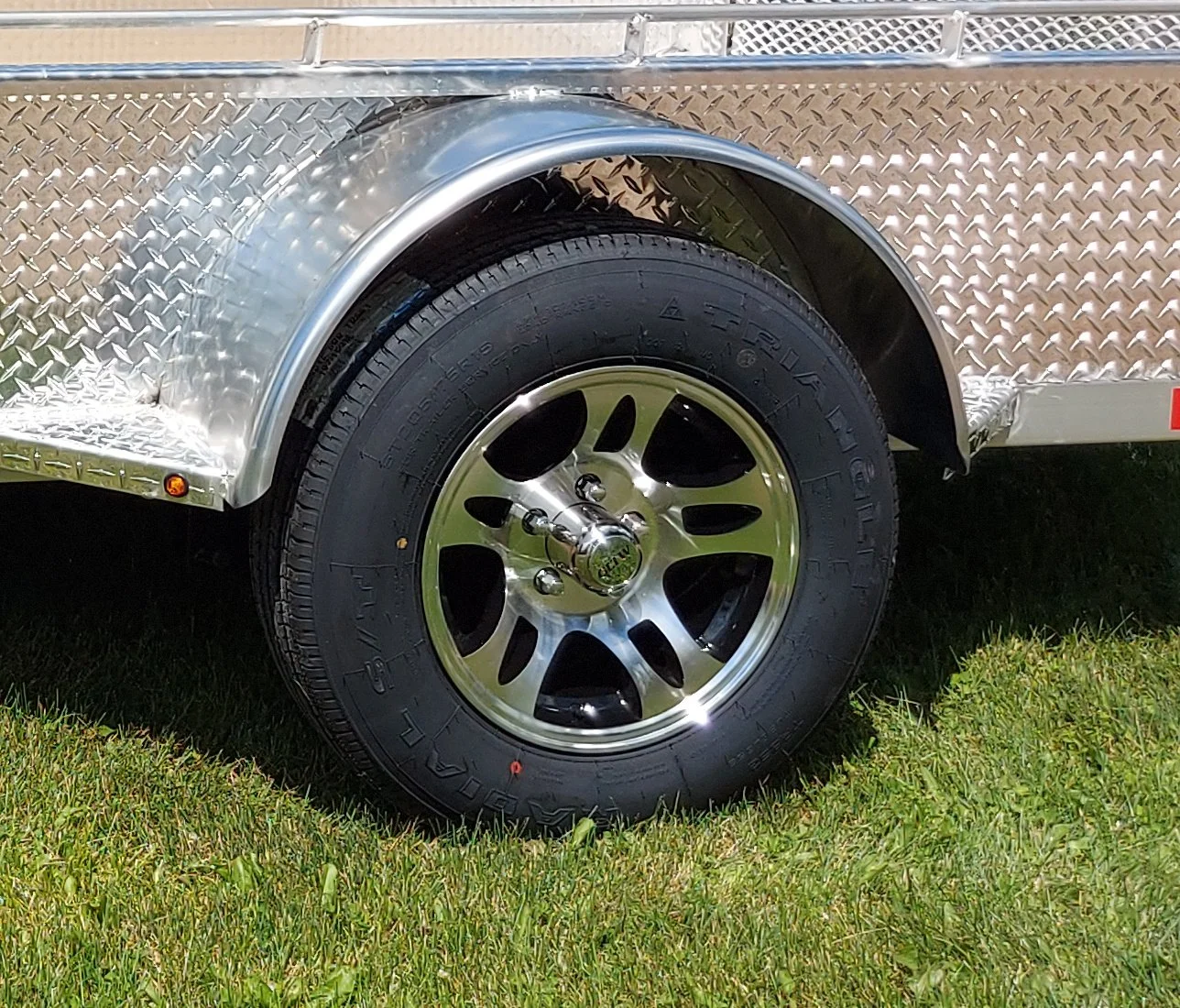

ST205/75R15 Tires with Aluminum Rims

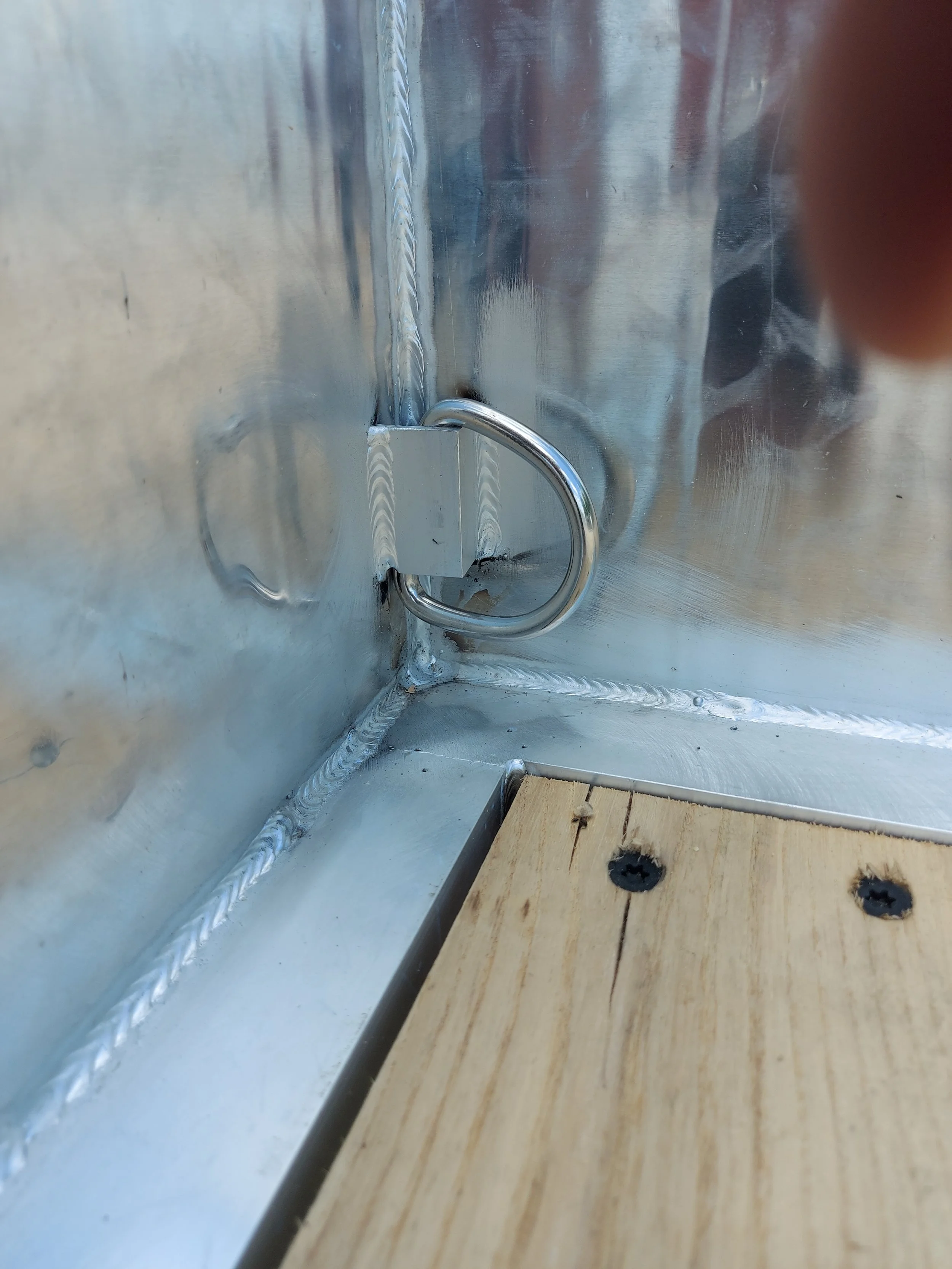

Welded D Rings to Secure Load

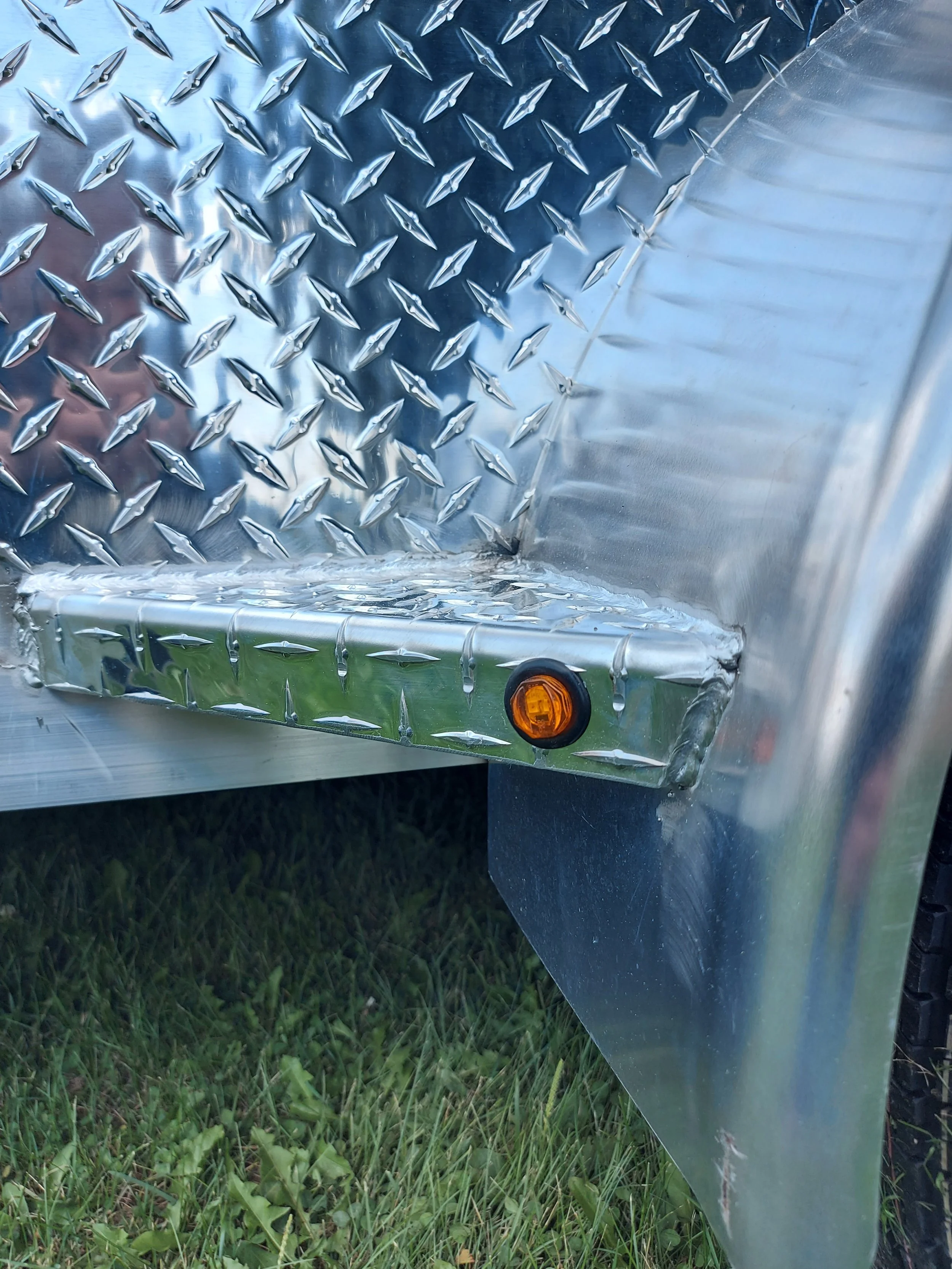

Fender Support

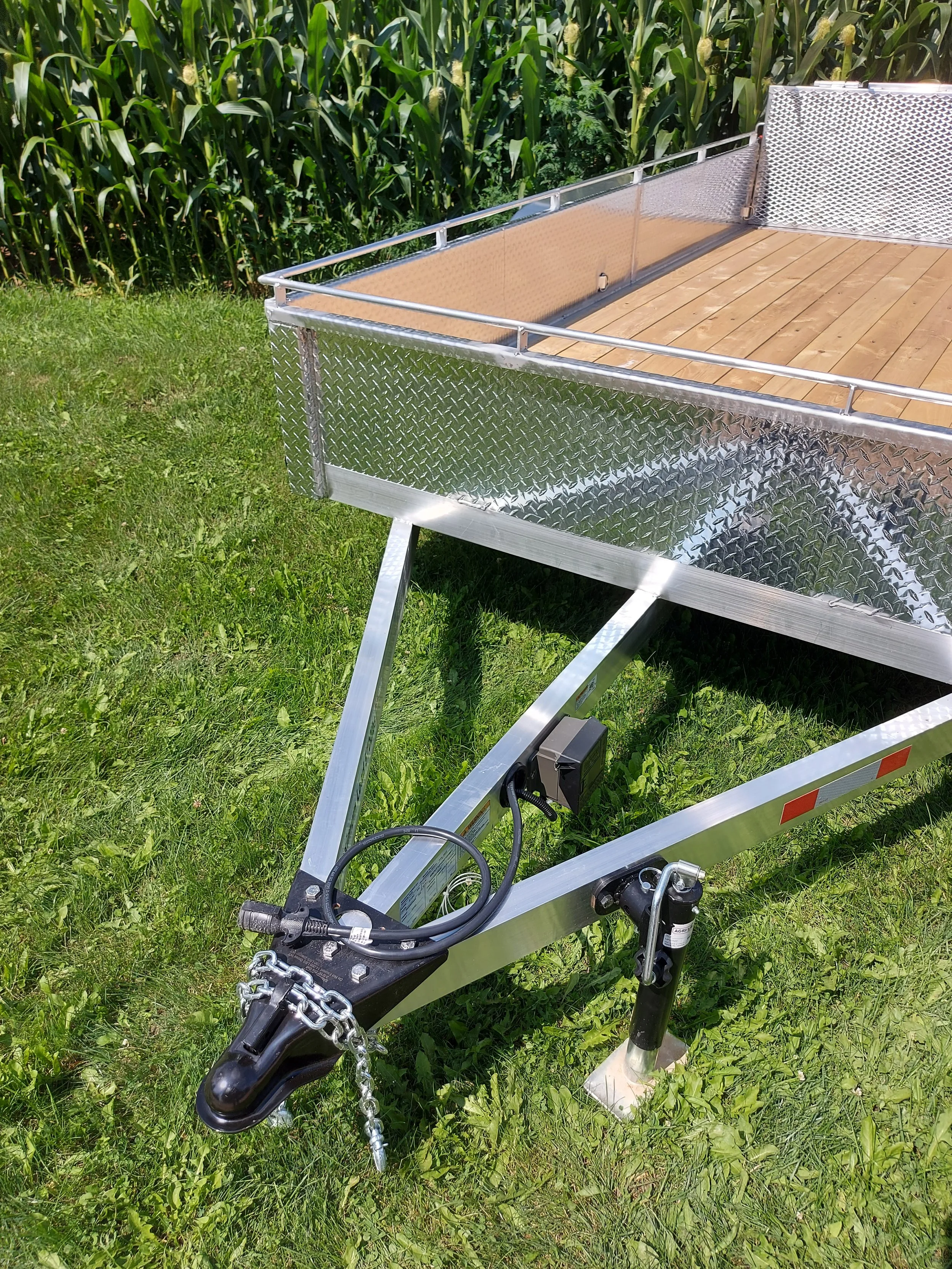

Triple Tongue Extends Under the Bed

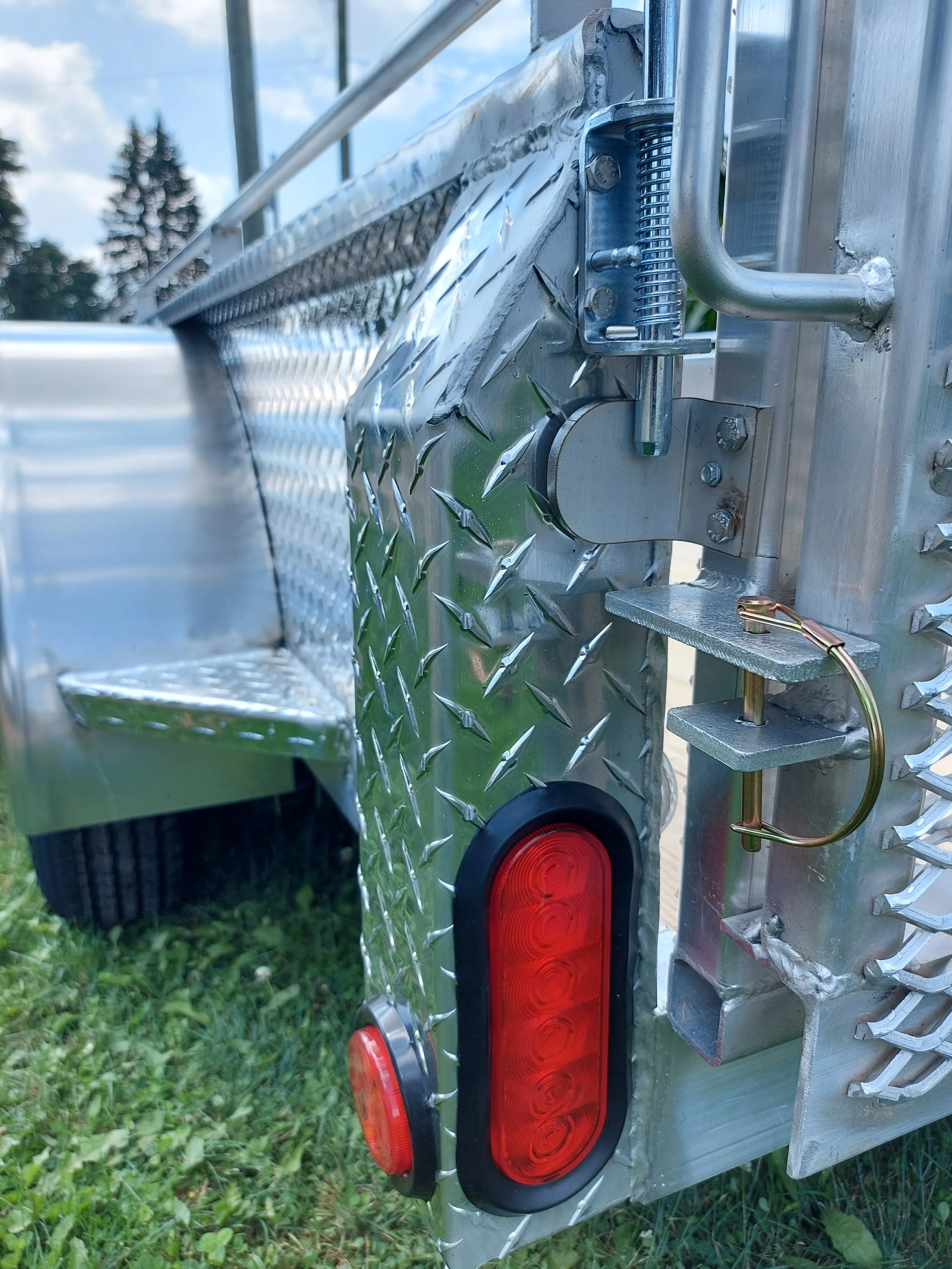

Enclosed Corner Box
with LED Lights

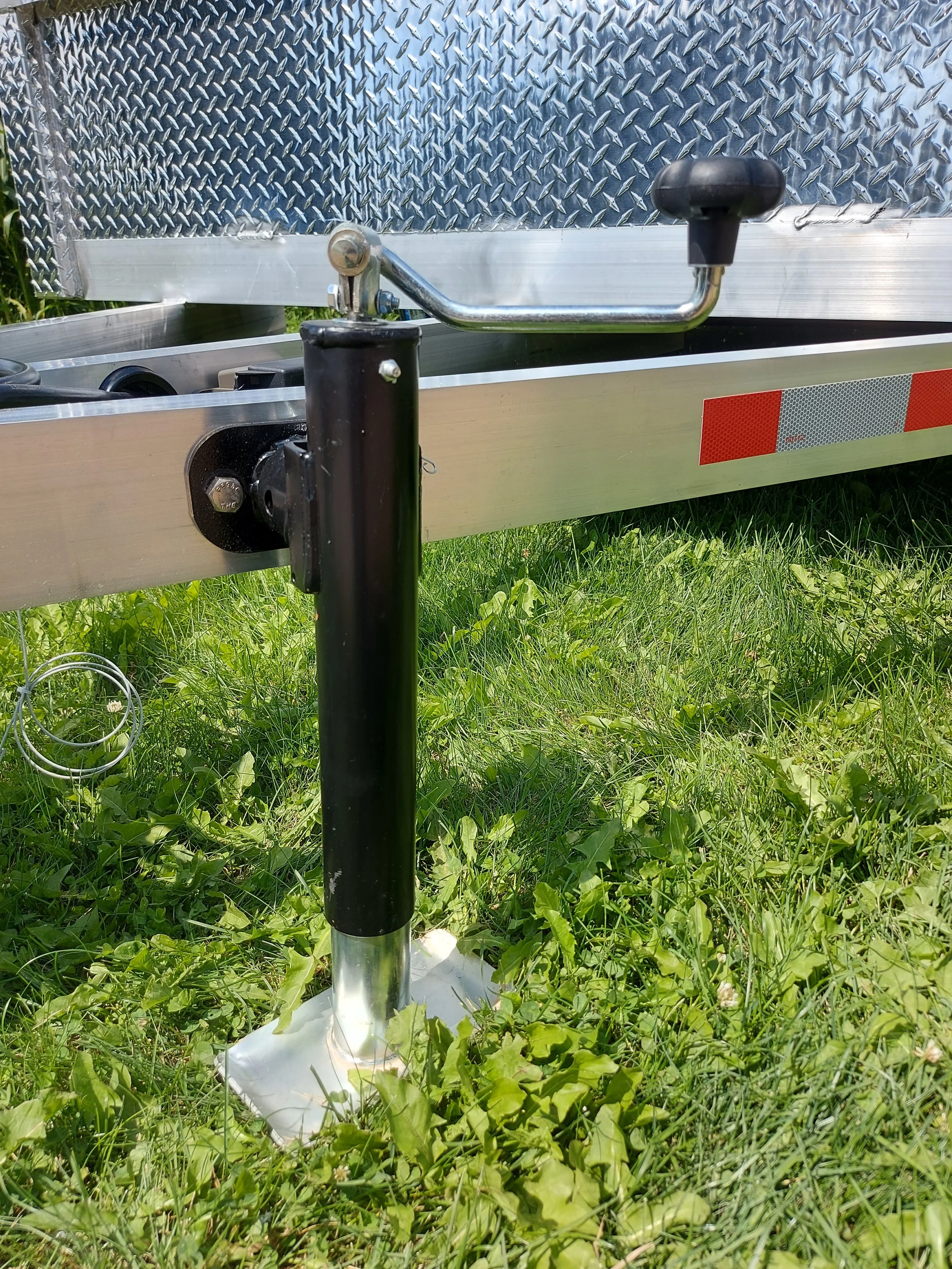

2000 Lb. Swivel Jack Stand

Sealed Wiring Harness

Optional Upgrades

Convenient V-Toolbox

Spare Tire

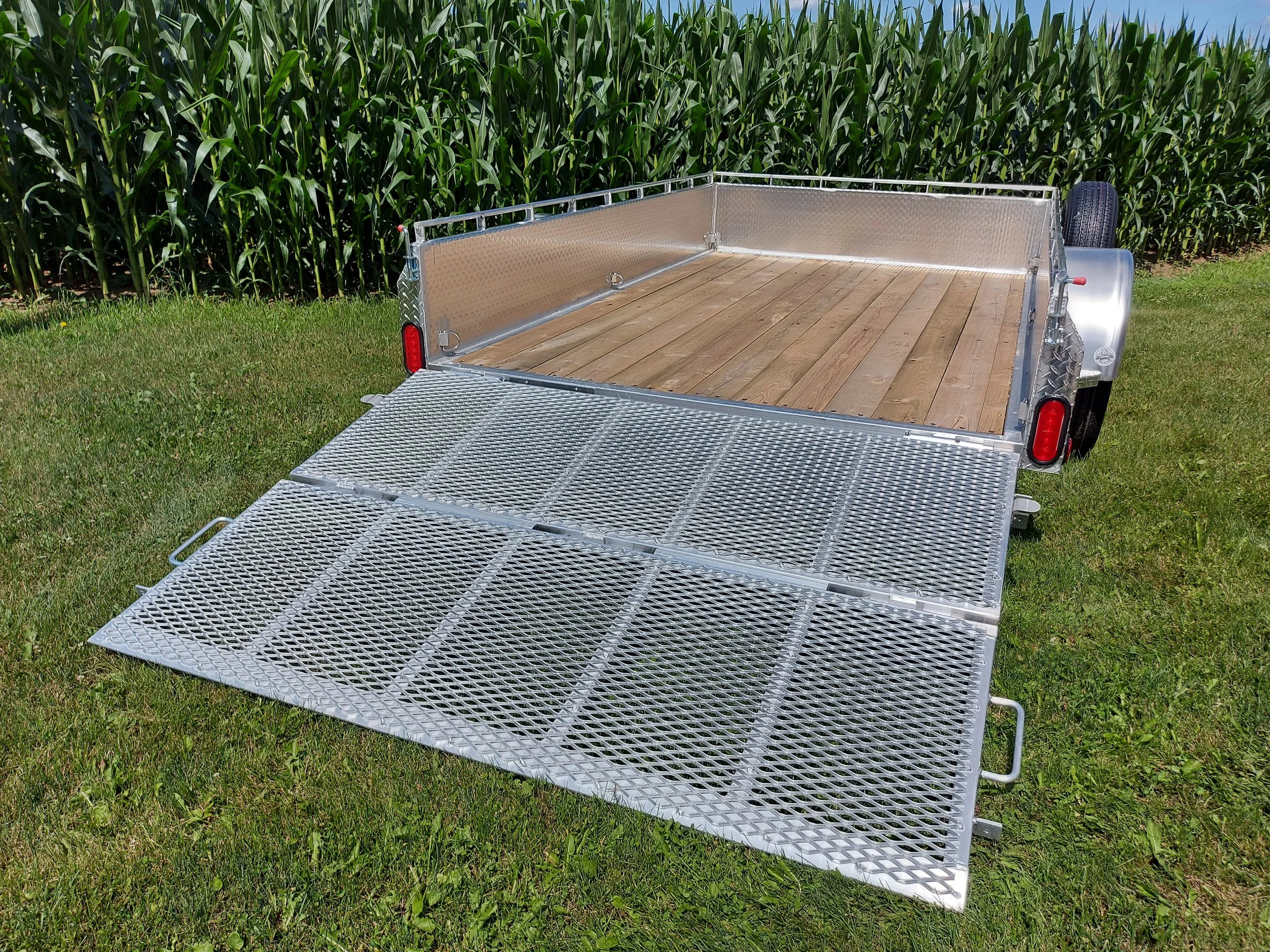

Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)

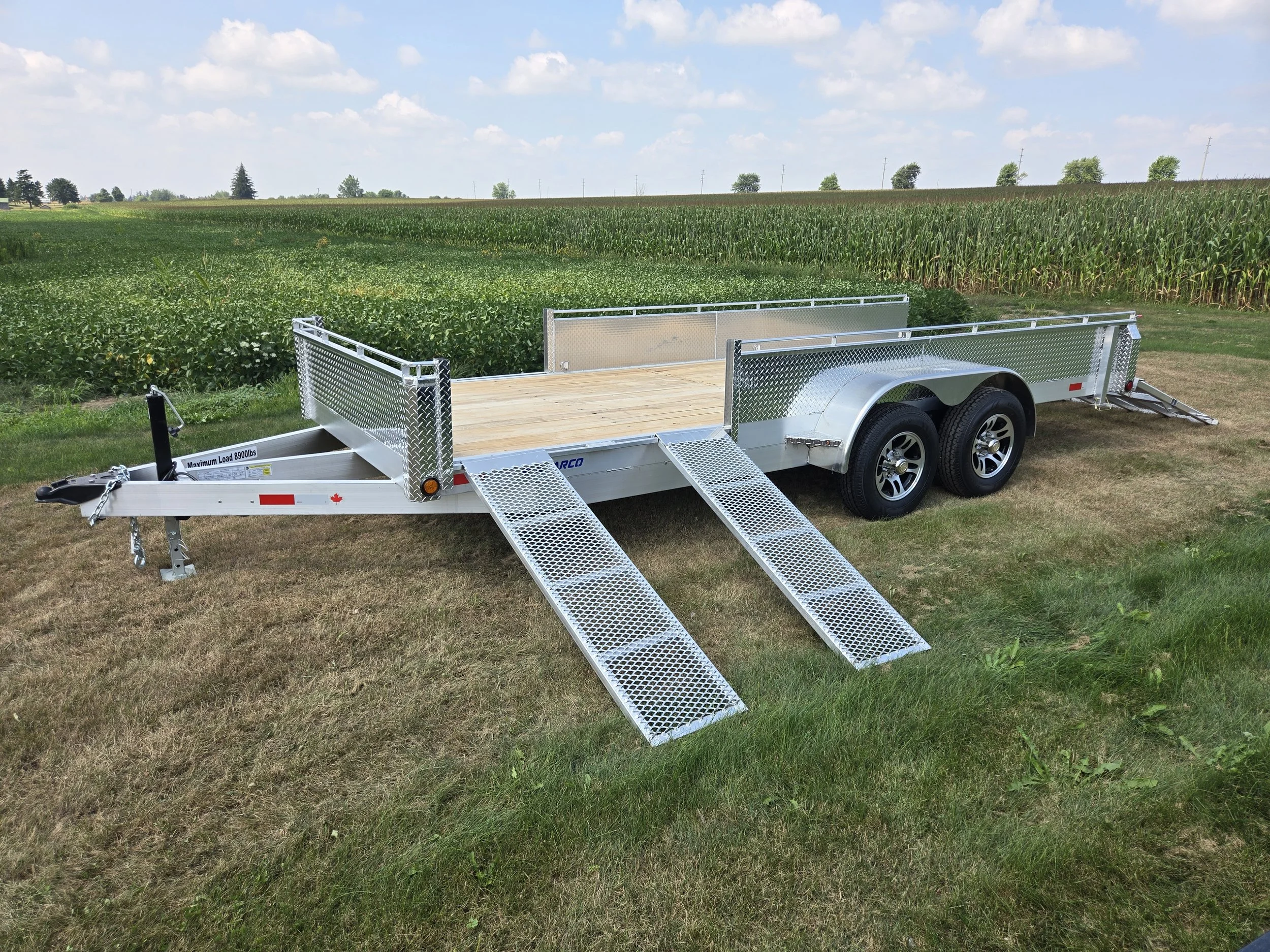

Side Loading Ramps
(Only available on some models)

Models & SPECIFICATIONS

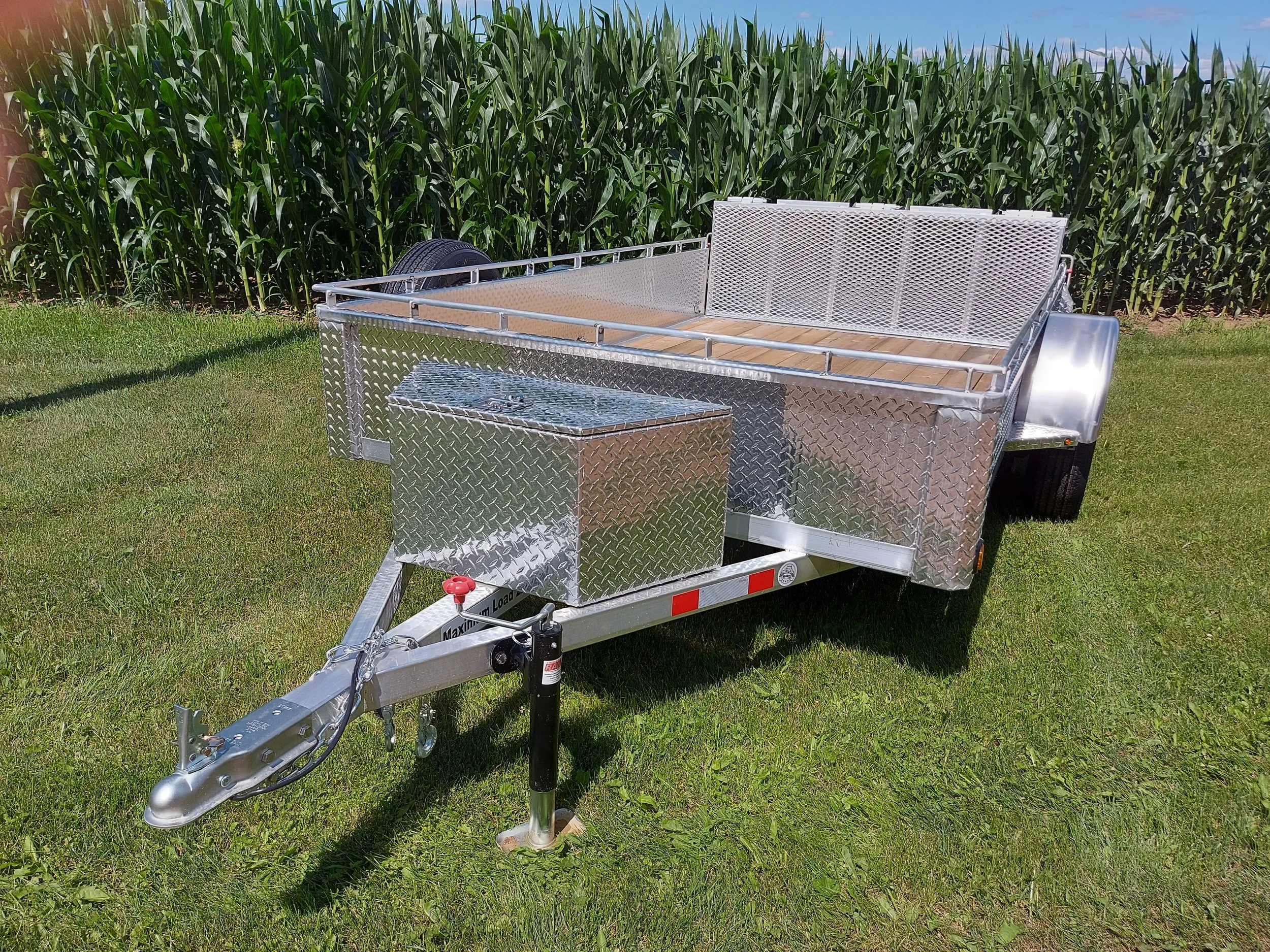

Single Axle Models


Tandem

80 x 12

80 x 14

80 x 16

      MODEL #

BCA8012-35D

BCA8014-35D

BCA8016-35D

      G.V.W.R.

7000 lb

7000 lb

7000 lb

      WEIGHT

1225 lb

1355 lb

1355 lb

      PAYLOAD

5775 lb

5645 lb

5645 lb

      AXLES

2 x 5200 lb

2 x 5200 lb

2 x 5200 lb

      STANDARD RAMP

80" x 50"

80" x 50"

80" x 50"

      DECK DIMENSIONS

80"x144"

80"x168"

80"x168"

      FLOOR

1.5" Solid Wood

1.5" Solid Wood

1.5" Solid Wood

      DECK HEIGHT

17"

17"

17"

      FRAME & TONGUE

4"x2" Aluminum Tube

4"x2" Aluminum Tube

4"x2" Aluminum Tube

      COUPLER

2 5/16"  A-Frame

2 5/16"  A-Frame

2 5/16"  A-Frame

      D RINGS

6 (3/Side)

6 (3/Side)

6 (3/Side)

      TIRES

ST225/75R15

ST225/75R15

ST225/75R15

      RIMS

15" Aluminum

15" Aluminum

15" Aluminum

      BRAKES

Electric - Rear Axle

Electric - Rear Axle

Electric - Rear Axle


Tandem

6 x 12

6 x 14

      MODEL #

BCA612-35D

BCA614-35D

      G.V.W.R.

7000 lb

7000 lb

      WEIGHT

1125 lb

1240 lb

      PAYLOAD

5875 lb

5760 lb

      AXLES

2 x 5200 lb

2 x 5200 lb

      STANDARD RAMP

72" x 50"

72" x 50"

      DECK DIMENSIONS

72"x144"

72"x168"

      FLOOR

1.5" Solid Wood

1.5" Solid Wood

      DECK HEIGHT

17"

17"

      FRAME & TONGUE

4"x2" Aluminum Tube

4"x2" Aluminum Tube

      COUPLER

2 5/16"  A-Frame

2 5/16"  A-Frame

      D RINGS

6 (3/Side)

6 (3/Side)

      TIRES

ST225/75R15

ST225/75R15

      RIMS

15" Aluminum

15" Aluminum

      BRAKES

Electric - Rear Axle

Electric - Rear Axle


Tandem

80 x 18

80 x 20

      MODEL #

BCA8018-35D

BCA8020-35D

      G.V.W.R.

7000 lb

7000 lb

      WEIGHT

1640 lb

1750 lb

      PAYLOAD

5360 lb

5250 lb

      AXLES

2 x 5200 lb

2 x 5200 lb

      STANDARD RAMP

80" x 50"

80" x 50"

      DECK DIMENSIONS

80" x216"

80" x240"

      FLOOR

1.5" Solid Wood

1.5" Solid Wood

      DECK HEIGHT

17"

17"

      FRAME & TONGUE

6"x2" Aluminum Tube

6"x2" Aluminum Tube

      COUPLER

2 5/16"  A-Frame

2 5/16"  A-Frame

      D RINGS

8 (4/Side)

8 (4/Side)

      TIRES

ST225/75R15

ST225/75R15

      RIMS

15" Aluminum

15" Aluminum

      BRAKES

Electric - Rear Axle

Electric - Rear Axle

Tandem Axle Models


      TANDEM
      6 x 12
      6 x 14

      MODEL #
      BCA612-35D
      BCA614-35D

      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb

      WEIGHT
      1125 lb
      1240 lb

      PAYLOAD
      5875 lb
      5760 lb

      DECK DIMENSIONS
      72" x 144" (17" H)
      72" x 168" (17" H)

      FRAME & TONGUE
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube

      D RINGS
      6 (3/side)
      6 (3/side)

      STANDARD RAMP
      72" x 50"
      72" x 50"




      TANDEM
      80 x 12
      80 x 14
      80 x 16



      MODEL #
      BCA8012-35D
      BCA8014-35D
      BCA8016-35D


      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb
      3180 kg / 7010 lb


      WEIGHT
      1225 lb
      1355 lb
      1470 lb


      PAYLOAD
      5775 lb
      5645 lb
      5530 lb


      DECK DIMENSIONS
      80" x 144" (17" H)
      80" x 168" (17" H)
      80" x 192" (17" H)


      FRAME & TONGUE
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube


      D RINGS
      6 (3/Side)
      6 (3/Side)
      6 (3/Side)


      STANDARD RAMP
      80" x 50"
      80" x 50"
      80" x 50"






      TANDEM
      80 x 18
      80 x 20

      MODEL #
      BCA8018-35D
      BCA8020-35D

      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb

      WEIGHT
      1640 lb
      1750 lb

      PAYLOAD
      5360 lb
      5250 lb

      DECK DIMENSIONS
      80" x 216" (17" H)
      80" x 240" (17" H)

      FRAME & TONGUE
      6" x 2" Alum. Tube
      6" x 2" Alum. Tube

      D RINGS
      8 (4/Side)
      8 (4/Side)

      STANDARD RAMP
      80" x 50"
      80" x 50"
