Silver utility trailer with diamond plate sides, a wooden deck, black tires, and diamond plate storage box, isolated on black background.

ALUMINUM UTILITY TRAILERS

1 x 3500 lb Axle
8 - 14 ft. Length
Uni-body Construction
17 Inch Deck Height
Easy-Load Ramp

SINGLE AXLE ALUMINUM UTILITY TRAILERS

Aluminum trailers are up to 30% lighter than comparable steel models. This translates to increased payload with the same axle capacity, greater fuel efficiency, easier maneuverability with less maintenance and good durability.

Suitable for both personal and light commercial applications, BEARCO Aluminum Utility Trailers can handle everything from landscaping equipment and construction materials to ATVs and other recreational gear.

These lightweight trailers are ideal to tow with a mid-size SUV or EV and are available in a wide range of sizes to fit every need.

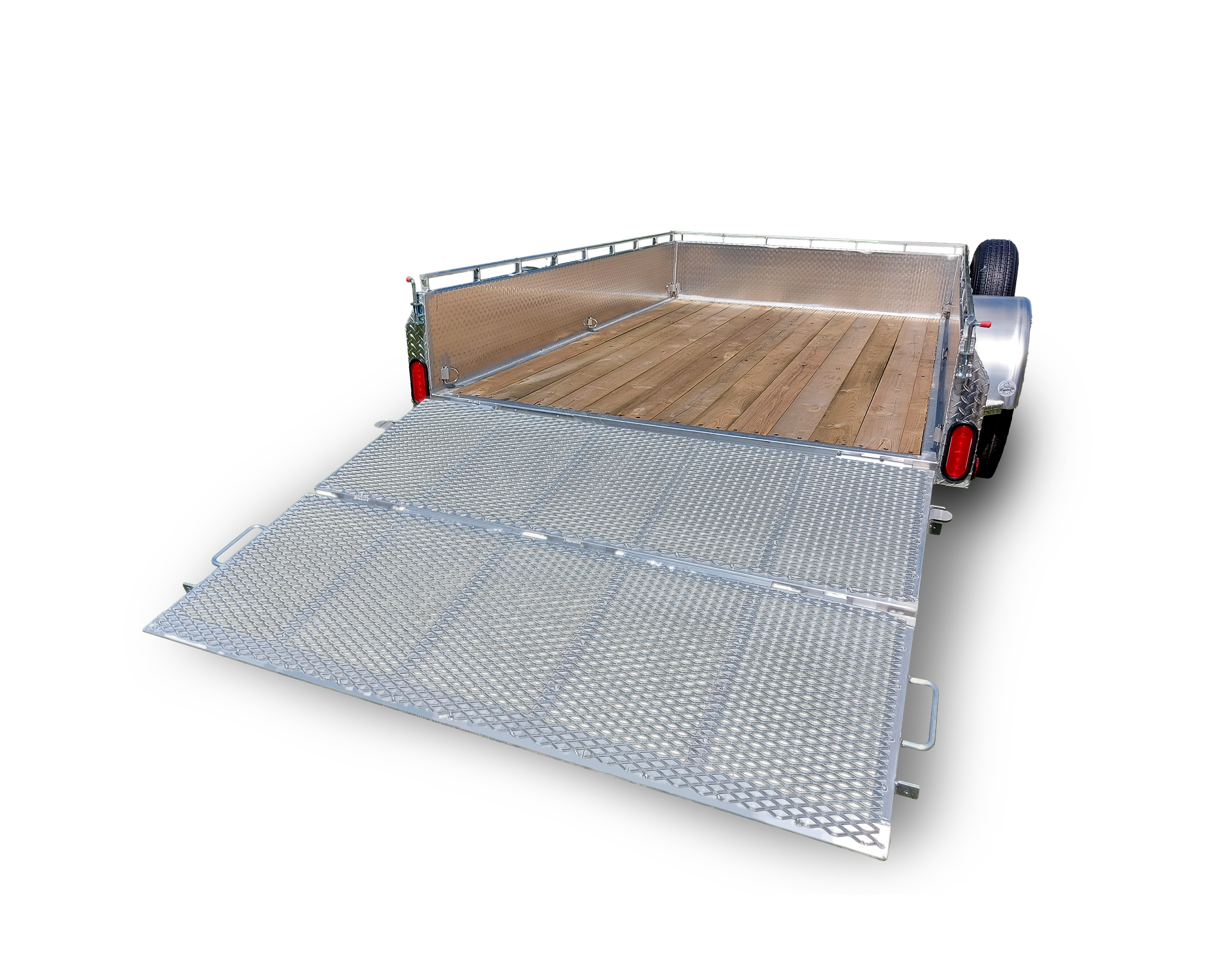

Open flatbed trailer with a wooden floor and metal sides, featuring a fold-down metal ramp, against a black background.
Silver utility trailer with diamond plate metal sides and a single axle, attached to a hitch. The trailer has a front support stand and red and orange reflectors.
FEATURES
Options
Models & Specifications
Gallery

Design Features

Uni-body Construction &
4 Inch Drop Axle

ST205/75R15 Tires with Aluminum Rims

Welded D Rings to Secure Load

Fender Support

Triple Tongue Extends Under the Bed

Enclosed Corner Box
with LED Lights

2000 Lb. Swivel Jack Stand

Sealed Wiring Harness

Optional Upgrades

Convenient V-Toolbox

Spare Tire

Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)

Side Loading Ramps
(Only available on some models)

Models & SPECIFICATIONS

Aluminum Utility Single Axle Models

Single

5 x 10 5 x 12 5 x 14
MODEL # BCA510-35 BCA512-35 BCA514-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 700 lb 785 lb 785 lb
PAYLOAD 2290 lb 2205 lb 2205 lb
AXLES 1 x 3500 lb 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 60" x 50" 60" x 50" 60" x 50"
DECK DIMENSIONS 60"x120" 60"x144" 60"x144"
FLOOR 1.5" Solid Wood 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17" 17"
FRAME & TONGUE 3"x2" Aluminum Tube 3"x2" Aluminum Tube 3"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight 2" Straight
D RINGS 4 (1/Corner) 6 (3/Side) 6 (3/Side)
TIRES ST205/75R15 ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum 15" Aluminum
BRAKES

Single

4 x 8 5 x 8
MODEL # BCA48-35 BCA58-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 550 lb 610 lb
PAYLOAD 2440 lb 2380 lb
AXLES 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 48" x 50" 60" x 50"
DECK DIMENSIONS 50"x97" 60"x97"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 3"x2" Aluminum Tube 3"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight
D RINGS 4 (1/Corner) 4 (1/Corner)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES

Single

6 x 10 6 x 12 6 x 14
MODEL # BCA610-35 BCA612-35 BCA614-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 790 lb 885 lb 885 lb
PAYLOAD 2200 lb 2105 lb 2105 lb
AXLES 1 x 3500 lb 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 72" x 50" 72" x 50" 72" x 50"
DECK DIMENSIONS 72"x120" 72"x144" 72"x144"
FLOOR 1.5" Solid Wood 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17" 17"
FRAME & TONGUE 3"x2" Aluminum Tube 3"x2" Aluminum Tube 3"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight 2" Straight
D RINGS 4 (1/Corner) 6 (3/Side) 6 (3/Side)
TIRES ST205/75R15 ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum 15" Aluminum
BRAKES

Single

80 x 12 80 x 14
MODEL # BCA8012-35 BCA8014-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 1010 lb 1140 lb
PAYLOAD 1980 lb 1850 lb
AXLES 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 80" x 50" 80" x 50"
DECK DIMENSIONS 80"x144" 80"x168"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 4"x2" Aluminum Tube 4"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight
D RINGS 6 (3/Side) 6 (3/Side)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES

Tandem Axle Models

Tandem

6 x 12 6 x 14
MODEL # BCA612-35D BCA614-35D
G.V.W.R. 3180 kg / 7010 lb 3180 kg / 7010 lb
WEIGHT 1125 lb 1240 lb
PAYLOAD 5875 lb 5760 lb
AXLES 2 x 3500 lb 2 x 3500 lb
STANDARD RAMP 72" x 50" 72" x 50"
DECK DIMENSIONS 72"x144" 72"x168"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 4"x2" Aluminum Tube 4"x2" Aluminum Tube
COUPLER 2 5/16" A-Frame 2 5/16" A-Frame
D RINGS 6 (3/side) 6 (3/side)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES Electric - Rear Axle Electric - Rear Axle

Tandem

80 x 12 80 x 14 80 x 16
MODEL # BCA8012-35D BCA8014-35D BCA8016-35D
G.V.W.R. 3180 kg / 7010 lb 3180 kg / 7010 lb 3180 kg / 7010 lb
WEIGHT 1225 lb 1355 lb 1355 lb
PAYLOAD 5775 lb 5645 lb 5645 lb
AXLES 2 x 3500 lb 2 x 3500 lb 2 x 3500 lb
STANDARD RAMP 80" x 50" 80" x 50" 80" x 50"
DECK DIMENSIONS 80"x144" 80"x168" 80"x168"
FLOOR 1.5" Solid Wood 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17" 17"
FRAME & TONGUE 4"x2" Aluminum Tube 4"x2" Aluminum Tube 4"x2" Aluminum Tube
COUPLER 2 5/16" A-Frame 2 5/16" A-Frame 2 5/16" A-Frame
D RINGS 6 (3/side) 6 (3/side) 6 (3/side)
TIRES ST205/75R15 ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum 15" Aluminum
BRAKES Electric - Rear Axle Electric - Rear Axle Electric - Rear Axle

Tandem

80 x 18 80 x 20
MODEL # BCA8018-35D BCA8020-35D
G.V.W.R. 3180 kg / 7010 lb 3180 kg / 7010 lb
WEIGHT 1640 lb 1750 lb
PAYLOAD 5360 lb 5250 lb
AXLES 2 x 3500 lb 2 x 3500 lb
STANDARD RAMP 80" x 50" 80" x 50"
DECK DIMENSIONS 80" x216" 80" x240"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 6"x2" Aluminum Tube 6"x2" Aluminum Tube
COUPLER 2 5/16" A-Frame 2 5/16" A-Frame
D RINGS 8 (4/Side) 8 (4/Side)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES Electric - Rear Axle Electric - Rear Axle
