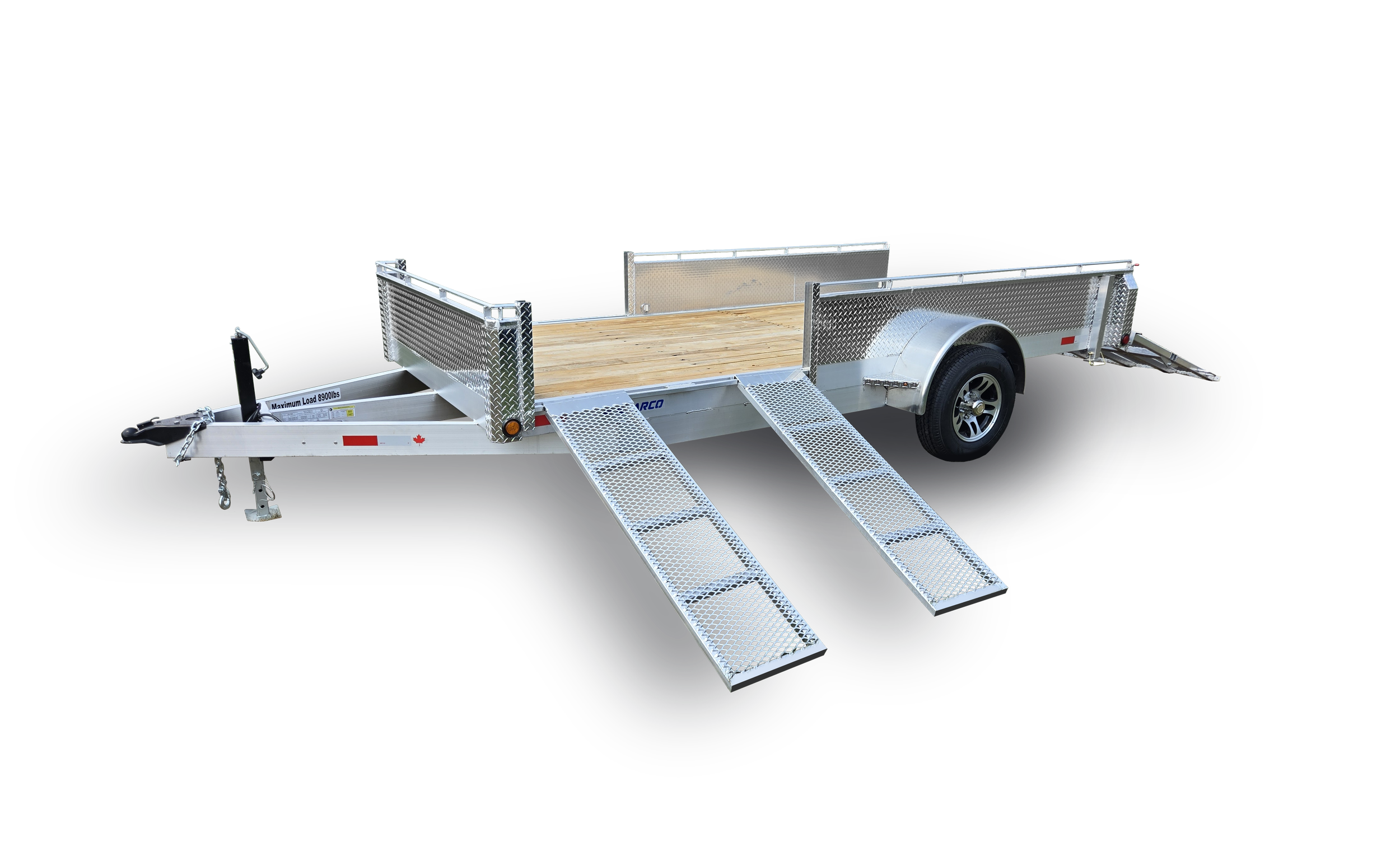

Silver flatbed trailer with wooden flooring, two metal ramps, and a diamond plate metal side railing, on black background.

ALUMINUM SIDELOAD ATV UTILITY TRAILERS

1 x 3500 lb Axle
Available on 12 & 14 ft Models
Uni-body Construction
17 Inch Deck Height
Easy Stow Side Ramps

SINGLE AXLE ALUMINUM
SIDELOAD ATV UTILITY TRAILERS

These trailers are designed for maximum convenience and versatility. Drive on and off with our front side loading ramps, with room behind for the rest of your toys. Available on 12 & 14 ft aluminum single axle utility trailers, the side panels convert to ramps to easily load your toys and increase the usability of the deck area.

With a 17” deck height, the ramps provide easy access for loading and unloading.

These trailers carry the same options as regular trailers, allowing you to customize your trailer to meet your specific needs.

There is a Bearco Trailer ready to haul your cargo. Order yours today from one of our DEALERS.

FEATURES
Options

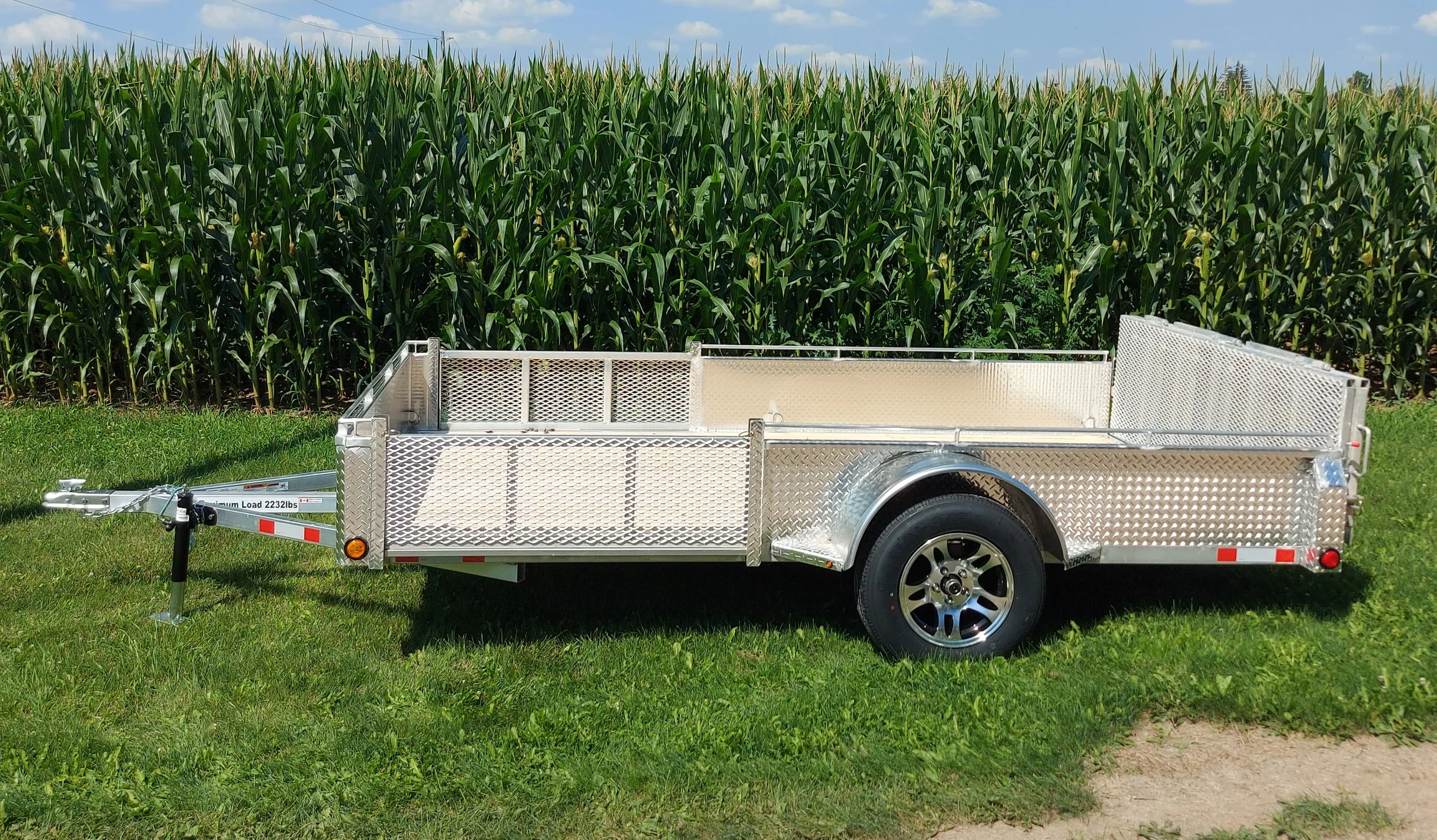

An aluminum utility trailer parked on grass in front of a cornfield

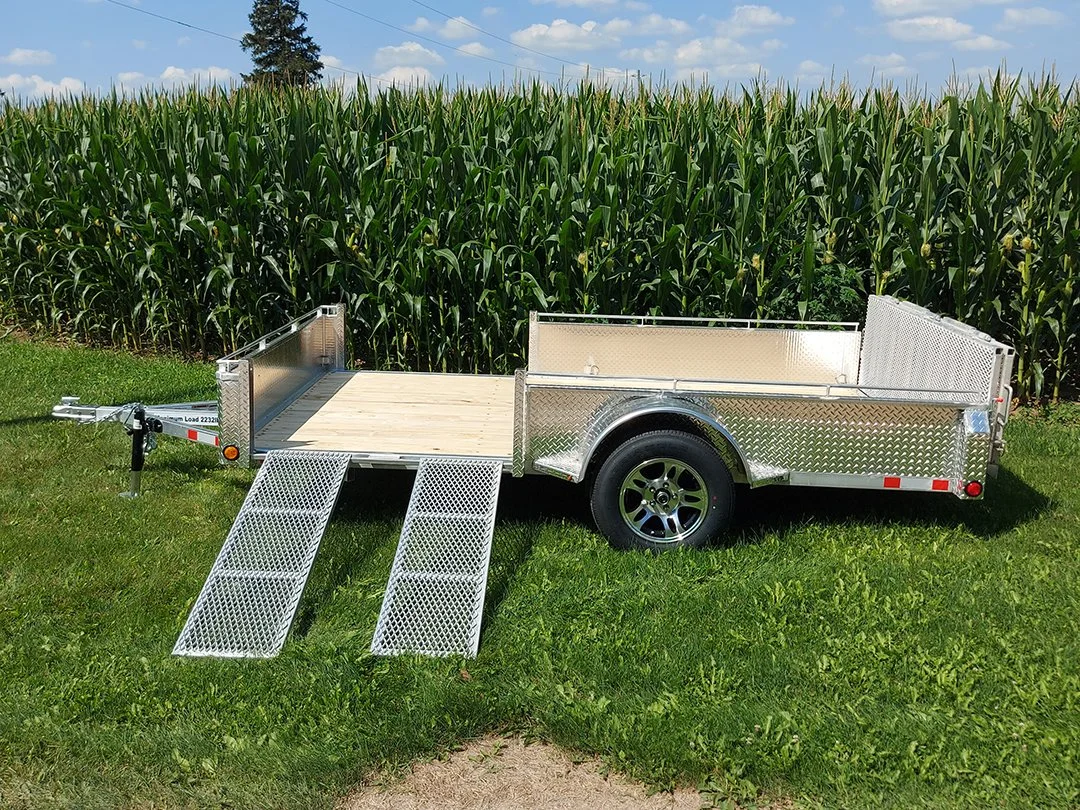

Metal utility trailer with ramps, parked on grass next to a cornfield.
Models & Specifications
Gallery

Design Features

Uni-body Construction &
4 Inch Drop Axle

ST205/75R15 Tires with Aluminum Rims

Welded D Rings to Secure Load

Fender Support

Triple Tongue Extends Under the Bed

Enclosed Corner Box
with LED Lights

2000 Lb. Swivel Jack Stand

Sealed Wiring Harness

Optional Upgrades

Convenient V-Toolbox

Spare Tire

Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)

Side Loading Ramps
(Only available on some models)

Models & SPECIFICATIONS

Sideload ATV UTILITY Single Axle Models

Sideload UTILITY

80 x 12 80 x 14
MODEL # BCA8012-35 BCA8014-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 1010 lb 1140 lb
PAYLOAD 1980 lb 1850 lb
AXLES 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 80" x 50" 80" x 50"
DECK DIMENSIONS 80"x144" 80"x168"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 4"x2" Aluminum Tube 4"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight
D RINGS 6 (3/Side) 6 (3/Side)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES N/A N/A

Sideload Utililty

6 x 12 6 x 14
MODEL # BCA612-35 BCA614-35
G.V.W.R. 1356 kg / 2990 lb 1356 kg / 2990 lb
WEIGHT 885 lb 1025 lb
PAYLOAD 2105 lb 1965 lb
AXLES 1 x 3500 lb 1 x 3500 lb
STANDARD RAMP 72" x 50" 72" x 50"
DECK DIMENSIONS 72"x144" 72"x168"
FLOOR 1.5" Solid Wood 1.5" Solid Wood
DECK HEIGHT 17" 17"
FRAME & TONGUE 3"x2" Aluminum Tube 4"x2" Aluminum Tube
COUPLER 2" Straight 2" Straight
D RINGS 6 (3/Side) 6 (3/Side)
TIRES ST205/75R15 ST205/75R15
RIMS 15" Aluminum 15" Aluminum
BRAKES N/A N/A
