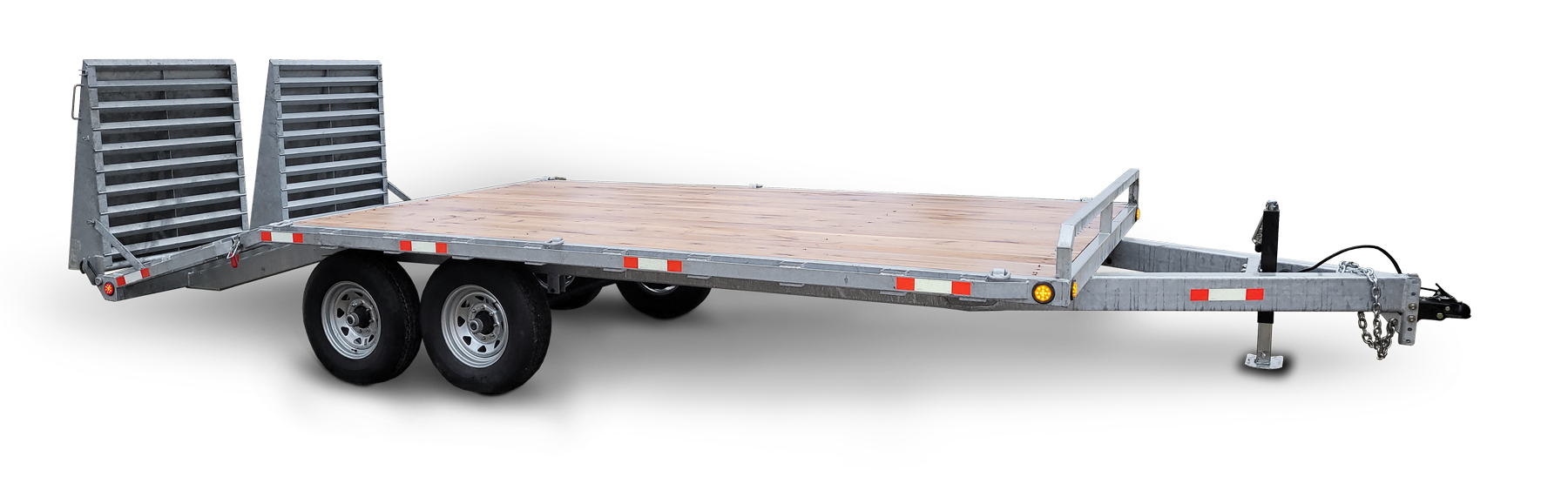

A flatbed utility trailer with metal sides and a wooden deck, equipped with dual wheels and a hitch for towing.

BEAVERTAIL
DECKOVER
TRAILERS

Tandem & Tri-Axle
Up to 20 ft. Lengths
Uni-body Construction
17 Inch Deck Height
Easy-Load Ramp

STEEL BEAVERTAIL DECKOVER TRAILERS

These trailers are versatile workhorses. Used by cargo, and heavy equipment haulers they can carry 2 skids side-by-side or full width heavy equipment. Designed with a rear built-in 48” ramp section combined with stand-up or fold-over ramps.

Available with an optional built-in winch track the sliding winches can be positioned at any point along the length of the trailer deck.

Designed for Canadian and roads and weather they are galvanized for a long service life. The frames are constructed with high strength steel tubing (min 65ksi) and the deck is covered with 1.50” thick hardwood.

Complemented with cold-weather sealed wiring harnesses, bright LED lights and adjustable height couplers (cast or pintle)

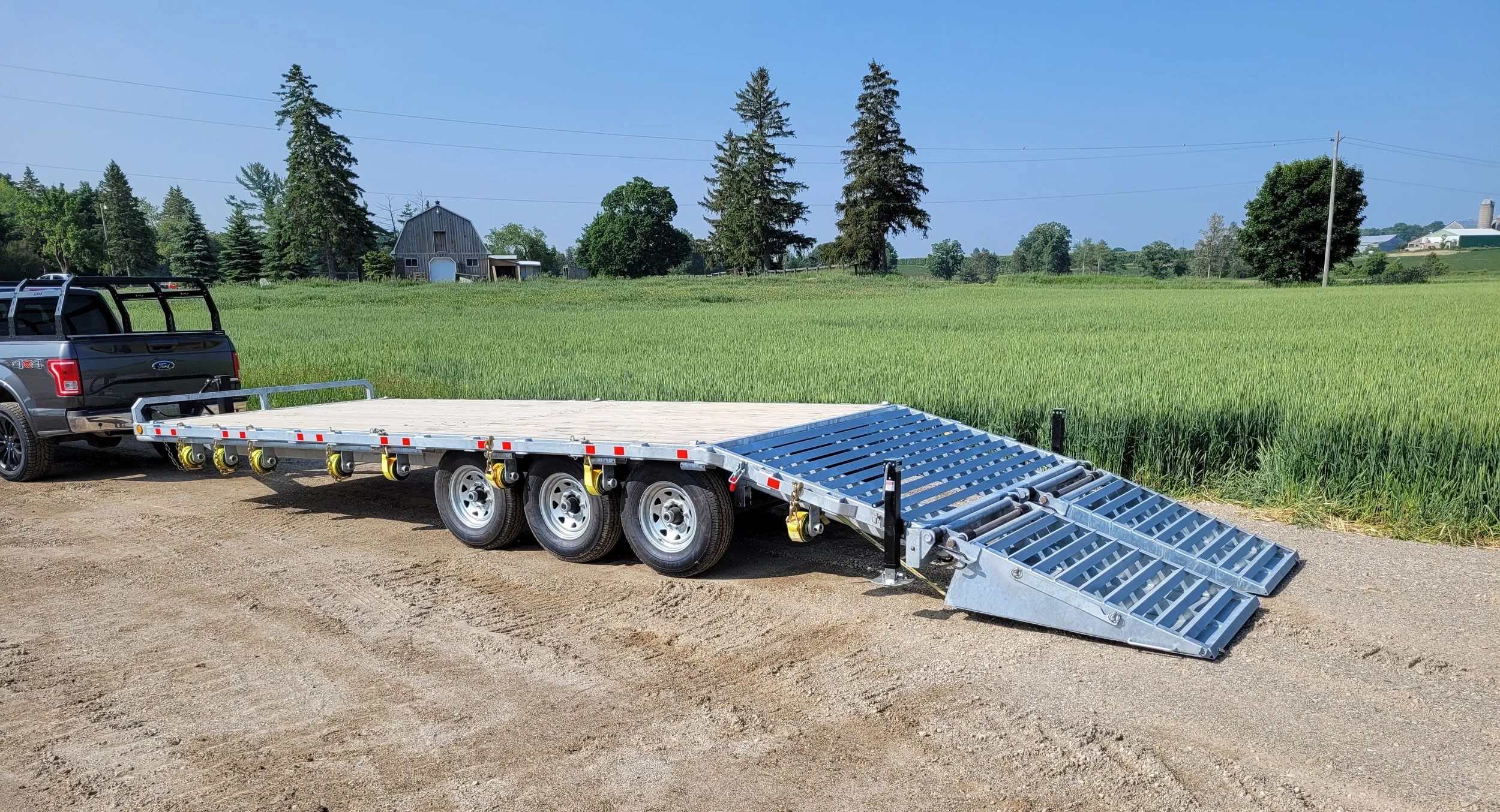

A black pickup truck hooked to a flatbed trailer with a metal loading ramp, parked on a dirt road in front of a green field and farm buildings.

A flatbed trailer with dual wheels parked on grassy ground in foggy weather, with trees, a road, and a car in the background.

FEATURES

Options

Models & Specifications

Gallery

Design Features

Uni-body Construction &
4 Inch Drop Axle

ST205/75R15 Tires with Aluminum Rims

Welded D Rings to Secure Load

Fender Support

Triple Tongue Extends Under the Bed

Enclosed Corner Box
with LED Lights

2000 Lb. Swivel Jack Stand

Sealed Wiring Harness

Optional Upgrades

Convenient V-Toolbox

Spare Tire

Bi-Fold Loading Ramps
(Max Load 1,500 lbs.)

Side Loading Ramps
(Only available on some models)

Models & SPECIFICATIONS

Single Axle Models




      SINGLE
      5 x 10
      5 x 12
      5 x 14



      MODEL #
      BCA510-35
      BCA512-35
      BCA514-35


      G.V.W.R.
      1356 kg / 2990 lb
      1356 kg / 2990 lb
      1356 kg / 2990 lb


      WEIGHT
      700 lb
      785 lb
      910 lb


      PAYLOAD
      2290 lb
      2205 lb
      2080 lb


      DECK DIMENSIONS
      60" x 120" (17" H)
      60" x 144" (17" H)
      60" x 168" (17" H)


      FRAME & TONGUE
      3" x 2" Alum. Tube
      3" x 2" Alum. Tube
      4" x 2" Alum. Tube


      D RINGS
      4 (1/Corner)
      6 (3/Side)
      6 (3/Side)


      STANDARD RAMP
      60" x 50"
      60" x 50"
      60" x 50"






      SINGLE
      4 x 8
      5 x 8

      MODEL #
      BCA48-35
      BCA58-35

      G.V.W.R.
      1356 kg / 2990 lb
      1356 kg / 2990 lb

      WEIGHT
      550 lb
      610 lb

      PAYLOAD
      2440 lb
      2380 lb

      DECK DIMENSIONS
      50" x 97" (17" H)
      60" x 97" (17" H)

      FRAME & TONGUE
      3" x 2" Alum. Tube
      3" x 2" Alum. Tube

      D RINGS
      4 (1/Corner)
      4 (1/Corner)

      STANDARD RAMP
      48" x 50"
      60" x 50"




      SINGLE
      6 x 10
      6 x 12
      6 x 14



      MODEL #
      BCA610-35
      BCA612-35
      BCA614-35


      G.V.W.R.
      1356 kg / 2990 lb
      1356 kg / 2990 lb
      1356 kg / 2990 lb


      WEIGHT
      790 lb
      885 lb
      1025 lb


      PAYLOAD
      2200 lb
      2105 lb
      1965 lb


      DECK DIMENSIONS
      72" x 120" (17" H)
      72" x 144" (17" H)
      72" x 168" (17" H)


      FRAME & TONGUE
      3" x 2" Alum. Tube
      3" x 2" Alum. Tube
      4" x 2" Alum. Tube


      D RINGS
      4 (1/Corner)
      6 (3/Side)
      6 (3/Side)


      STANDARD RAMP
      72" x 50"
      72" x 50"
      72" x 50"






      SINGLE
      80 x 12
      80 x 14

      MODEL #
      BCA8012-35
      BCA8014-35

      G.V.W.R.
      1356 kg / 2990 lb
      1356 kg / 2990 lb

      WEIGHT
      1010 lb
      1140 lb

      PAYLOAD
      1980 lb
      1050 lb

      DECK DIMENSIONS
      80" x 144" (17" H)
      80" x 168" (17" H)

      FRAME & TONGUE
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube

      D RINGS
      6 (3/Side)
      6 (3/Side)

      STANDARD RAMP
      80" x 50"
      80" x 50"

Tandem Axle Models


      TANDEM
      6 x 12
      6 x 14

      MODEL #
      BCA612-35D
      BCA614-35D

      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb

      WEIGHT
      1125 lb
      1240 lb

      PAYLOAD
      5875 lb
      5760 lb

      DECK DIMENSIONS
      72" x 144" (17" H)
      72" x 168" (17" H)

      FRAME & TONGUE
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube

      D RINGS
      6 (3/side)
      6 (3/side)

      STANDARD RAMP
      72" x 50"
      72" x 50"




      TANDEM
      80 x 12
      80 x 14
      80 x 16



      MODEL #
      BCA8012-35D
      BCA8014-35D
      BCA8016-35D


      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb
      3180 kg / 7010 lb


      WEIGHT
      1225 lb
      1355 lb
      1470 lb


      PAYLOAD
      5775 lb
      5645 lb
      5530 lb


      DECK DIMENSIONS
      80" x 144" (17" H)
      80" x 168" (17" H)
      80" x 192" (17" H)


      FRAME & TONGUE
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube
      4" x 2" Alum. Tube


      D RINGS
      6 (3/Side)
      6 (3/Side)
      6 (3/Side)


      STANDARD RAMP
      80" x 50"
      80" x 50"
      80" x 50"






      TANDEM
      80 x 18
      80 x 20

      MODEL #
      BCA8018-35D
      BCA8020-35D

      G.V.W.R.
      3180 kg / 7010 lb
      3180 kg / 7010 lb

      WEIGHT
      1640 lb
      1750 lb

      PAYLOAD
      5360 lb
      5250 lb

      DECK DIMENSIONS
      80" x 216" (17" H)
      80" x 240" (17" H)

      FRAME & TONGUE
      6" x 2" Alum. Tube
      6" x 2" Alum. Tube

      D RINGS
      8 (4/Side)
      8 (4/Side)

      STANDARD RAMP
      80" x 50"
      80" x 50"
